Inductive sensor M30 48 mm connector M12 PNP NO & NC Sn = 16 mm
- ● M30 for large automation systems
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Sensor for remote installations
- ● Plug-in – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

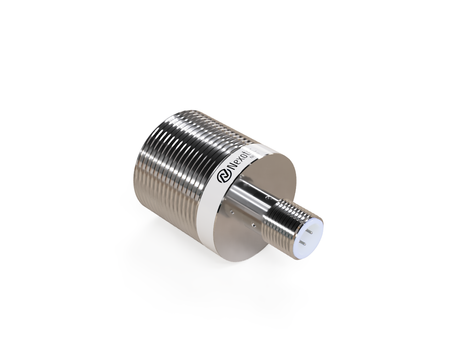

A durable inductive sensor NIS30326 with a PBT sensing face is widely used in modern industrial installations.
The M30 inductive model is a solution for systems requiring high operational efficiency. The Ø30 x 48 mm format is designed for operation in demanding, high-load conditions.
Technical specification:
- Diameter: M30, maximum detection range in this design class
- Length: 48 mm, easy integration with mounting systems
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Support for automation of welding processes and steel structure assembly.
- Use in automation of cutting and milling processes.
- Application in forming and sealing machines.
- Position control of grippers and robotic actuators.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- High detection precision in machining environments
- High precision positioning of elements in robotic systems
- Resistance to electromagnetic interference
When to choose this model
- Used in large transport systems.
- Performs well in high-vibration environments.
- Used in large-scale industrial installations.
- Used in heavy-duty OEM systems.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
