Inductive sensor M30 48 mm connector M12 NPN NO Sn = 22 mm
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Short housing for limited spaces
- ● Sensor with extended detection field
- ● Plug-in – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30341 with a PBT sensing face is an excellent choice for automation systems where reliability and repeatable performance are essential.
The M30 version was designed for automation systems requiring high durability. The larger Ø30 x 48 mm diameter results in higher resistance to displacement and vibration.
Technical specification:

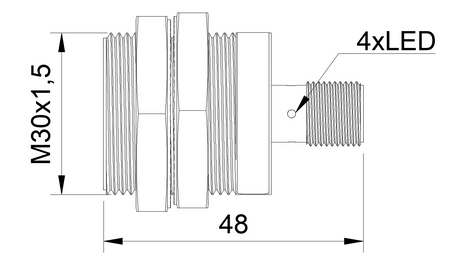

- Diameter: M30, maximum detection range in this design class
- Length: 48 mm, easy integration with mounting systems
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO, used in typical control applications
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in robotized assembly stations.
- Application in material feeding and unloading systems.
- Application in forming and sealing machines.
- Application in robotic axis positioning systems.
- Use in mass and custom production systems.
Features and Benefits
- High reliability in automated automotive production lines
- High detection precision in machining environments
- Easy integration with dosing and labeling machines
- Reliable synchronization of machines and robots
- Reliable operation in safety and control systems
When to choose this model
- Used in large transport systems.
- Suitable for dusty environments.
- Used in large automation lines.
- Ensures highest operational reliability.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
