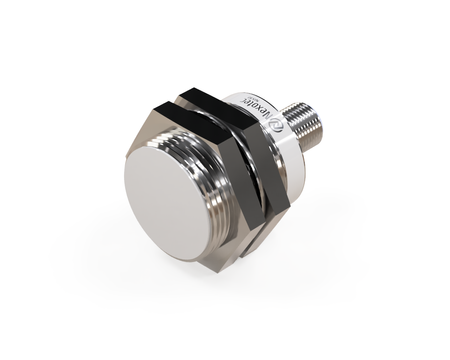

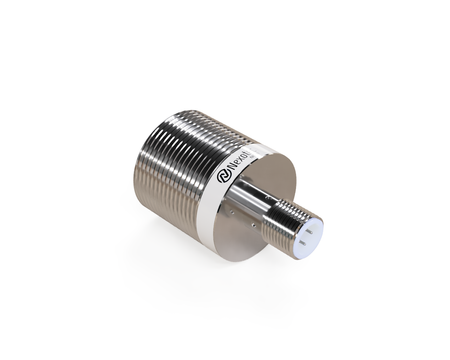

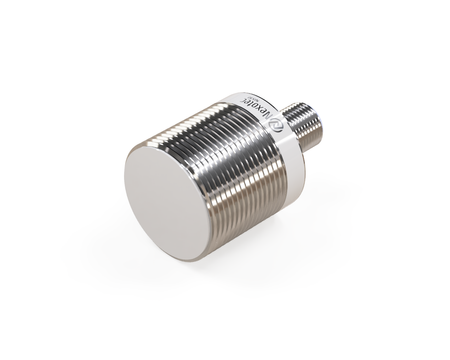

Inductive sensor M30 48 mm connector M12 NPN NO Sn = 16 mm
- ● M30 for large automation systems
- ● Short version for confined workspaces
- ● Sensor for detection over larger areas
- ● Plug-in – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30321 for industrial automation with a PBT sensing face provides stable and long-lasting performance.
The M30 sensor belongs to a series of devices designed for demanding applications. The large Ø30 x 48 mm diameter provides maximum mounting stability in heavy industrial applications.
Technical specification:

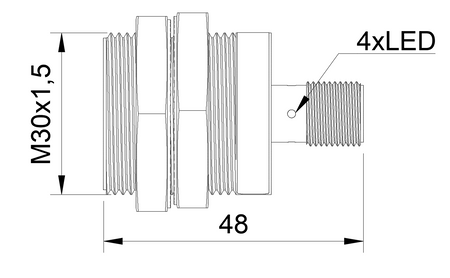

- Diameter: M30, maximum detection range in this design class
- Length: 48 mm, good balance between size and durability
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO, used in typical control applications
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Detection of elements in automated vehicle production systems.
- Use in automation of cutting and milling processes.
- Use in automation of packaging and sorting processes.
- Operation in modern production robotization systems.
- Use in actuator and mechanism control systems.
Features and Benefits
- High reliability in automated automotive production lines
- Fast response in dynamic machining processes
- Stable detection in high-throughput processes
- Stable operation in dynamic automation systems
- Reliable operation in safety and control systems
When to choose this model
- Used for detecting large metal components.
- Ensures very stable detection.
- Ensures reliable detection of large objects.
- Used in heavy industrial lines.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
