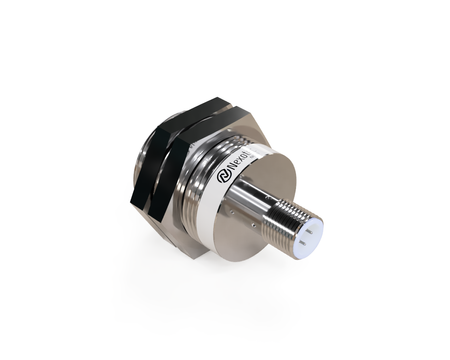

Inductive sensor M30 48 mm connector M12 NPN NO & NC Sn = 22 mm
- ● M30 housing for large applications
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Sn distance for operation at farther distances
- ● Plug-in – durable in harsh environments
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30345 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.
The M30 model belongs to a series of sensors designed for operation in heavy industrial conditions. The large Ø30 x 48 mm diameter provides maximum mounting stability in heavy industrial applications.
Technical specification:
- Diameter: M30, stable operation at long sensing distances
- Length: 48 mm, easy integration with mounting systems
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Quality and presence control of elements in production processes.
- Detection of workpieces before machining operations.
- Application in packaging transport systems.
- Support for synchronization of robots and machines.
- Use in mass and custom production systems.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- High response speed in packaging lines
- Reliable synchronization of machines and robots
- Resistance to electromagnetic interference
When to choose this model
- Suitable for heavy industry and large installations.
- Used in high-performance systems.
- Suitable for very demanding applications.
- Suitable for the most demanding environments.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
