Inductive sensor M30 48 mm connector M12 NPN NC Sn = 10 mm
- ● M30 allows easy installation
- ● Housing for small panels and machines
- ● Standard range for everyday machine operation
- ● Plug-in – durable for everyday use
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30302 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.

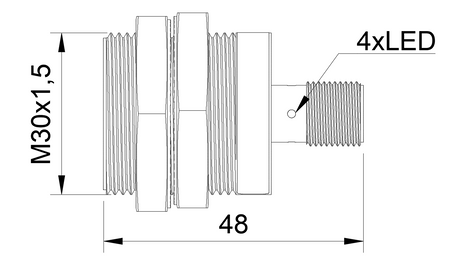

The M30 inductive sensor is a key component of industrial automation systems. The Ø30 x 48 mm sensor provides secure seating even in very demanding operating conditions.
Technical specification:
- Diameter: M30, designed for heavy industry
- Length: 48 mm, good balance between size and durability
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Monitoring of component presence in production transport systems.
- Position control of machine axes and working components.
- Application in forming and sealing machines.
- Position control of grippers and robotic actuators.
- Application in machine safety and interlock systems.
Features and Benefits
- Resistance to intensive cyclic operation
- High precision positioning of elements in robotic systems
When to choose this model
- Suitable for heavy industry and large installations.
- Performs well in high-vibration environments.
- Used in heavy-duty OEM systems.
- Ensures highest operational reliability.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
