Inductive sensor M30 40 mm cable 2m NPN NO & NC Sn = 15 mm
- ● M30 for large automation systems
- ● Mini enclosure saves space
- ● Standard operating zone for industrial systems
- ● With cable – protected against oils and lubricants
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS30015-K2
An inductive sensor NIS30015-K2 with a Teflon-finished sensing face guarantees stable operation even under intensive use.
The M30 model represents a line of sensors for heavy-duty applications., Rozmiar Ø30 x 40 mm zwiększa odporność na rozluźnienia montażowe w długiej eksploatacji.
Technical specification:

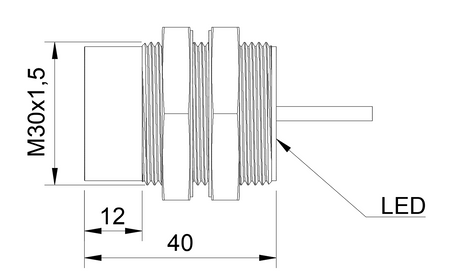

- Diameter: M30, designed for heavy industry
- Length: 40 mm, good balance between size and durability
- Sensing range: 15 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: 2 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Quality and presence control of elements in production processes.
- Use in automation of cutting and milling processes.
- Application in packaging transport systems.
- Support for synchronization of robots and machines.
- Support for high-duty cycle equipment operation.
Features and Benefits
- Precise detection of metal components in assembly processes
- Resistance to coolants, oils and industrial contaminants
- Precise synchronization of production processes
- Resistance to frequent cycles and micro-vibrations
When to choose this model
- Used for detecting large metal components.
- Ensures very stable detection.
- Ensures reliable detection of large objects.
- Suitable for the most demanding environments.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
