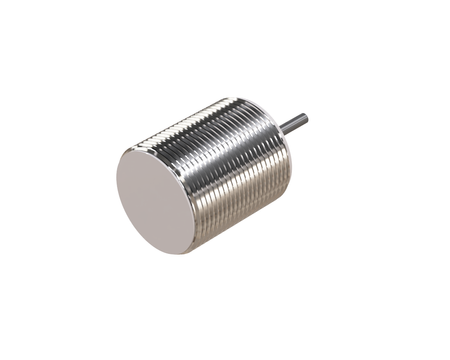

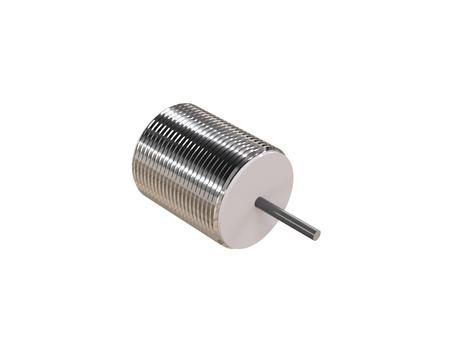

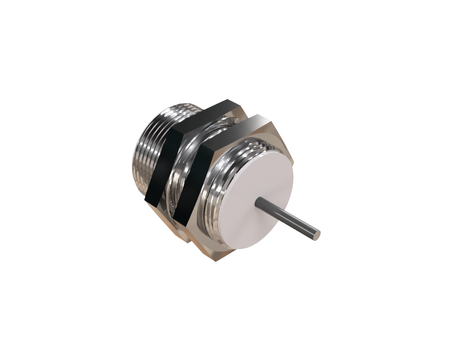

Inductive sensor M30 35 mm cable 3m PNP NC Sn = 22 mm
- ● Large M30 provides flexibility in embedding
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Sensor with extended range for long-distance detection
- ● With cable – fast adjustment and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS30044-K3 with a PBT sensing face is distinguished by its durability and high-quality construction.
The M30 sensor fits into a range of solutions for heavy industry and mass production. The larger Ø30 x 35 mm housing provides better transfer of mounting loads.
Technical specification:

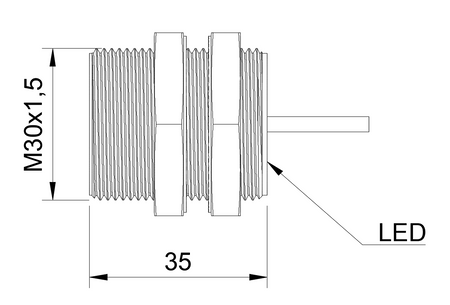

- Diameter: M30, designed for heavy industry
- Length: 35 mm, easy integration with mounting systems
- Sensing range: 22 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NC, used in safety functions
- Cable length: 3 m
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in positioning and production synchronization systems.
- Monitoring of processes in machining centers.
- Control of labeling and dosing machines.
- Support for synchronization of robots and machines.
- Operation in demanding industrial high-reliability environments.
Features and Benefits
- Stable operation in high-dynamic cycle environments
- High precision positioning of elements in robotic systems
- High resistance to harsh industrial conditions
When to choose this model
- Used in applications requiring maximum detection range.
- Used in high-performance systems.
- Used in large automation lines.
- Used in continuous production.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
