Inductive sensor M18 Metal face 55 mm cable 2m PNP NC Sn = 8 mm
Symbol:
NMF18044
Inductive sensor M18 Metal face 55 mm cable 2m PNP NC Sn = 8 mm
- NMF18044
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
Address:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Symbol
NMF18044
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M18
Switching distance
8 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NC
Response time
0,5ms
Switching frequency
500Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
TAK

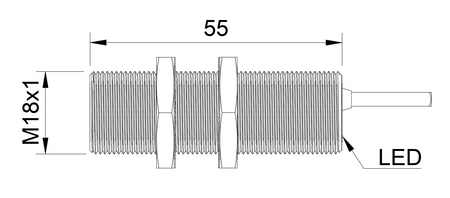

Dimensions
Ø18 x 55 mm
Sensor length
55 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
2 m
Short-circuit protection
TAK
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
