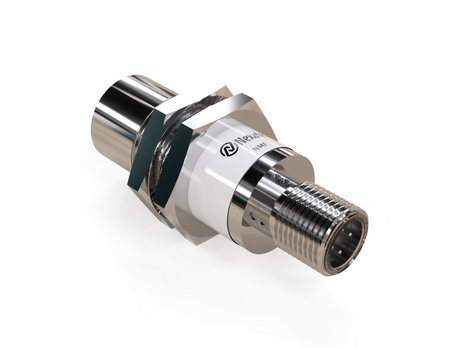

Inductive sensor M18 Metal face 48 mm connector M12 PNP NO Sn = 8 mm
- ● Inductive M18 in an all-metal version for industrial applications
- ● For use in space-constrained automation environments
- ● Sensor with long sensing distance
- ● Engineered for tough environments
- ● Plug-in version – for harsh environments
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A versatile stainless steel inductive sensor NMF18133 combines rugged all-metal construction, precision detection, long service life, and outstanding resistance to mechanical damage and harsh industrial conditions.
The M18 all-metal inductive sensor is part of a professional product range developed for advanced industrial automation systems requiring maximum durability and dependable performance., Due to their larger dimensions, Ø18 x 48 mm sensors provide an increased sensing surface and more stable operation.
Technical specification:
- Diameter: M18, reinforced construction for reliable operation in harsh industrial conditions
- Length: 48 mm, stable mechanical construction for reliable operation
- Sensing range: 8 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NO, signal generated upon detection of a metal target
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- They are widely used in robotic assembly cells and automated manufacturing workstations.
- Detects workpiece presence before machining operations begin.
- Delivers reliable performance in high-speed packaging and processing environments.
- Used in robotic systems for precise position monitoring of components.
- Monitors the position of components in special-purpose machines.
Features & Benefits
- Resistance to vibration and intensive industrial operation.
- Stable operation in CNC machines and industrial automation systems.
- Compact design enabling installation in space-limited applications.
- Resistance to frequent operating cycles and micro-vibrations.
- Stable operation in machines with high cyclic loads.
When to choose this model
- Used in industrial transport systems and heavy automation applications requiring robust sensing technology.
- Suitable for intensive industrial use where resistance to abrasion, vibration, and damage is essential.
- Provides reliable operation in demanding environments with increased exposure to mechanical stress.
- Performs reliably under demanding operating conditions with high mechanical loads.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
