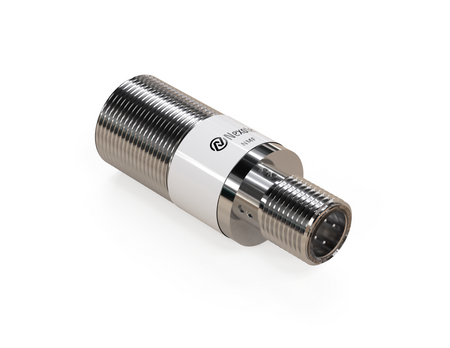

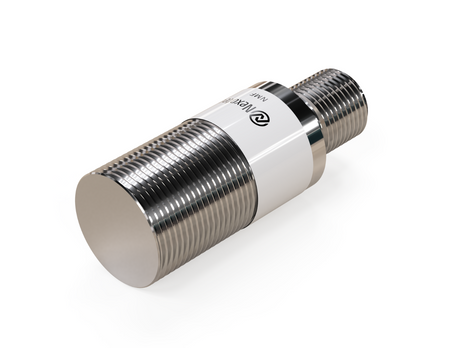

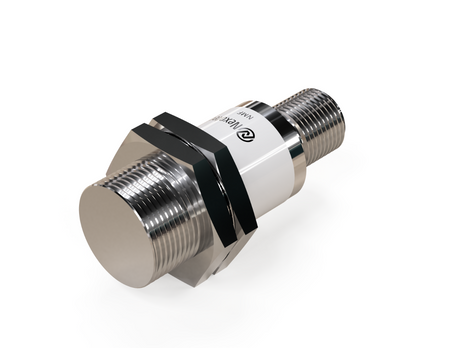

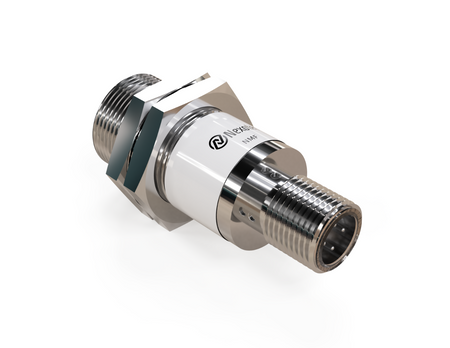

Inductive sensor M18 Metal face 48 mm connector M12 NPN NO Sn = 8 mm
- ● M18 with high mechanical strength and resistance
- ● Reduced design for modular systems
- ● Sensor with high sensing range
- ● Industrial-grade metal housing
- ● Plug-in version – moisture and dust resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NMF18161 with a stainless steel sensing face offers excellent resistance to impacts, high temperatures, metal fragments, chemical exposure, and intensive industrial operation.
This M18 variant is designed for industrial environments where durability, precision, mechanical resistance, and long-term reliability are key requirements., Due to its size, the Ø18 x 48 mm sensor performs effectively in more demanding mounting applications.
Technical specification:

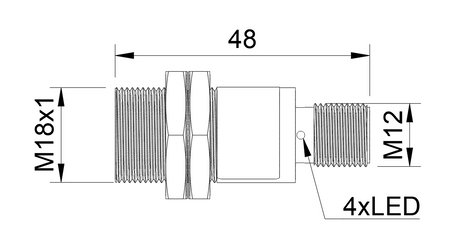

- Diameter: M18, large diameter design providing extended detection range
- Length: 48 mm, universal dimensions suitable for a wide range of industrial applications
- Sensing range: 8 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
- Switching function: NO, signal generated upon detection of a metal target
- Cable length: n/d
- Supply voltage: DC 10-30V, compatibility with PLC control systems and industrial automation networks
Applications
- They enhance quality control through reliable part presence detection and inspection processes.
- Detects the presence of workpieces in machining fixtures and clamping systems.
- Used in packaging conveyor and material handling systems.
- Supports synchronization between robots and industrial machines.
- Integrated into machine safety systems and interlock applications.
Features & Benefits
- Resistance to vibration and intensive industrial operation.
- Resistance to coolants, oils, and industrial contaminants.
- Easy integration with dosing and labeling machines.
- High positioning accuracy of components in robotic systems.
- High resistance to harsh industrial conditions.
When to choose this model
- Designed for continuous 24/7 operation in demanding industrial installations.
- Designed to withstand harsh industrial conditions, mechanical impacts, and intensive operation.
- Suitable for operation in dusty environments, vibration-prone areas, and harsh production conditions.
- Designed for large automation systems requiring durable and reliable metal detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
