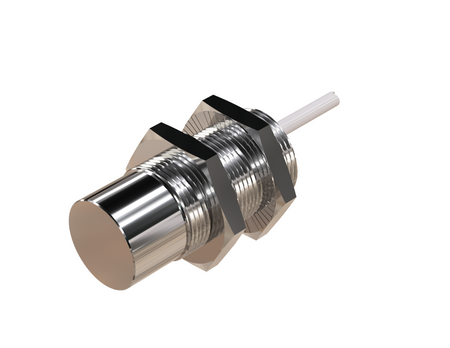

Inductive sensor M18 Metal face 40 mm cable 2m NPN NC Sn = 8 mm
Symbol:
NMF18032
Inductive sensor M18 Metal face 40 mm cable 2m NPN NC Sn = 8 mm
- ● Cylindrical M18 with high durability and resistance
- ● Designed for operation in confined spaces
- ● Sensor with long sensing distance
- ● Extreme wear resistance
- ● Cable version – quick installation and adjustment
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NMF18032
An industrial all-metal inductive proximity sensor with a stainless steel face combines robust construction, superior durability, and excellent resistance to external damage.
The M18 model is part of a sensor range developed for industrial automation, process control, and machine monitoring systems requiring reliable detection and enhanced resistance., Ø18 x 40 mm sensors provide an excellent balance between compact design and increased mechanical resistance.
Technical specification:
- Diameter: M18, reinforced construction for reliable operation in harsh industrial conditions
- Length: 40 mm, easy integration with standard mounting systems and fixtures
- Sensing range: 8 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: 2 m
- Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
- Cable-connected sensors are widely used in automotive production lines for reliable metal object detection and component presence detection.
- Used in CNC machines for precise position monitoring of workpieces and cutting tools.
- Delivers reliable performance in high-speed packaging and processing environments.
- Detects the presence of components within robotic work zones.
- Detects position in industrial material handling and conveyor systems.
Features & Benefits
- Easy integration with robotic systems and PLC control systems.
- Reliable detection of workpiece and tool positions.
- Resistance to intensive cyclic operation.
- Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
- Resistance to electromagnetic interference.
When to choose this model
- Used in industrial transport systems and heavy automation applications requiring robust sensing technology.
- Used in large-scale automation systems requiring highly durable sensing solutions.
- Suitable for industrial OEM installations where rugged all-metal construction provides additional protection.
- Designed for large automation systems requiring durable and reliable metal detection.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NMF18032
Producer code
5907367832808
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M18
Switching distance
8 mm
Mounting
Non-flush mounting
Output function
NPN
Switching function
NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,5ms
Switching frequency
500Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Stainless steel
Material active face
Stainless steel
LED display
YES
Dimensions
Ø18 x 40 mm
Sensor length
40 mm
Electrical connection
Connection type
Cable
Connector size
n/d
Cable length
2 m
Cable diameter
⌀ 5 mm
Cable
3 x 0,34 mm²
Cable material
PVC
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NMF18032
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
