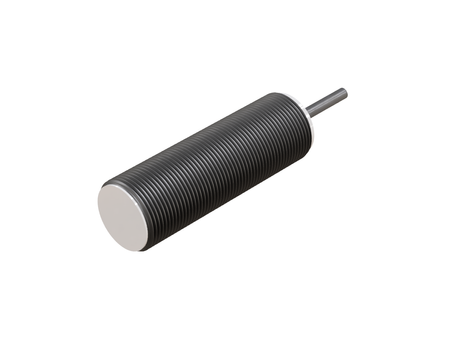

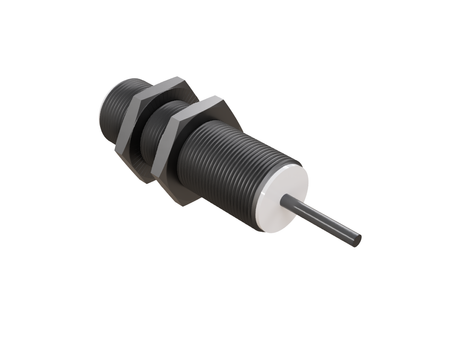

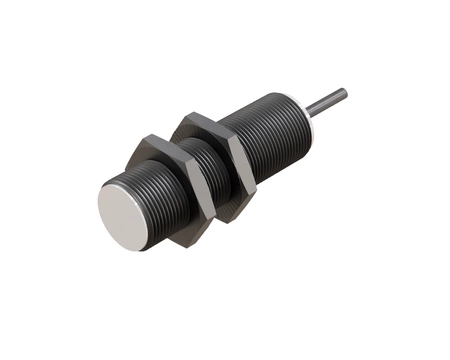

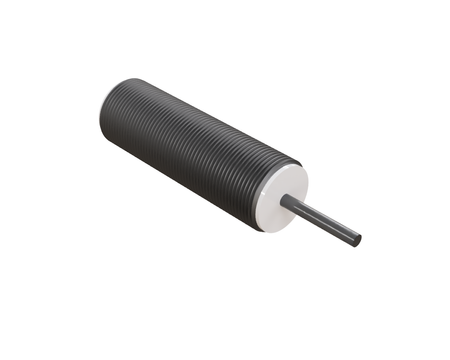

Inductive sensor M18 for welding process 55 mm cable 2m NPN NO Sn = 5 mm

The modern NWI18001 Heavy Duty inductive sensor for welding guarantees long service life and reliable performance in applications exposed to intensive loads and harsh environmental conditions.

The M18 size enables detection of parts from a greater distance, which matters with large welded components, Ø18 x 55 mm is a format that provides secure mechanical mounting throughout the continuous-duty cycle of a resistance-welding line.

Technical specification:

• Diameter: M18, a format that provides a greater detection distance than the smaller diameters in this line

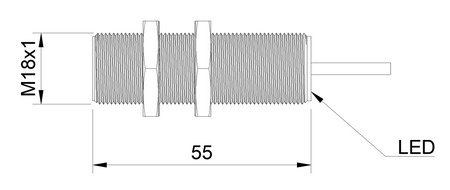

• Length: 55 mm, an extended housing that provides extra mounting rigidity under harsh welding conditions
• Detection range: 5 mm, stable metal-detection characteristics even close to a resistance-welding machine's electromagnetic field
• Housing: Threaded, a threaded housing allows precise adjustment of the sensor's position relative to the weld point
• Housing material: Brass with PTFE coating, the PTFE coating increases the housing's resistance to the contamination typical of a welding environment
• Sensor face material: PTFE, the PTFE material keeps detection parameters stable even after repeated contact with spatter
• Mounting: Flush mounting, the flush version allows the sensor to be recessed into the metal fixtures of the welding station
• Switching function: normally open (NO), the NO function simplifies integration with most existing resistance-welding machine control systems
• Output type: NPN, the NPN output type works well with the typical PLC controller inputs on resistance-welding lines
• Connection: with a 2 m cable, a cable resistant to the vibration and frequent movement typical of welding robots
• Supply voltage: DC 10-30V, a standard voltage range compatible with the power supply of most welding-line control cabinets
• Electromagnetic interference (EMC) resistance: yes, a stable output signal even in the immediate vicinity of the strong electromagnetic fields present during welding
• Catalog number: W1CF-M1805N-O3U2

Applications

• It is used in welding automation systems and resistance welding automation systems as a feedback element for the PLC controller.
• It is a component of welding process control systems and resistance welding process control systems, confirming the presence and position of parts.
• It is used in automated welding systems and automated resistance welding systems operating continuously.
• It performs well in robotic welding systems and robotic welding lines, where robots operate without constant operator supervision.
• It supports the operation of smart welding lines and smart welding stations integrated with higher-level control systems.

Benefits/Features

• Proven to be resistant to electromagnetic fields, it operates reliably even in the immediate vicinity of the coils and current-carrying cables of a welding machine.
• It is suited to operation in a strong electromagnetic field, typical of resistance welding and arc welding.
• Its proven EMC resistance is valued by integrators building EMC-resistant industrial sensors for welding and resistance-welding applications.
• Thanks to its high resistance, it performs well in environments with high levels of electromagnetic interference, such as those generated by welding machines.
• It can be used as a welding machine sensor resistant to interference and a resistance welding machine sensor resistant to electromagnetic interference.

When to choose this model

• When part-position monitoring is required during automated welding.
• When the application requires operation in a welding and resistance-welding environment exposed to spatter.
• When stable sensor operation matters despite the interference present in welding processes.
• When the application requires a sensor for a robotic resistance-welding line.
