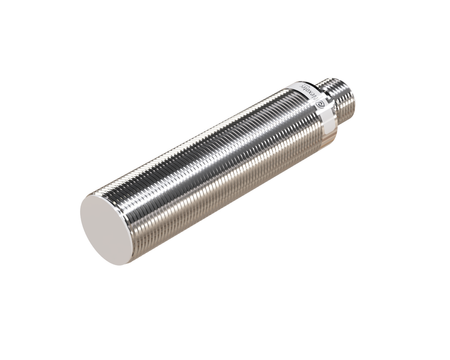

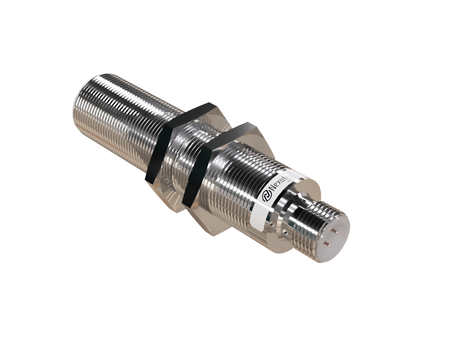

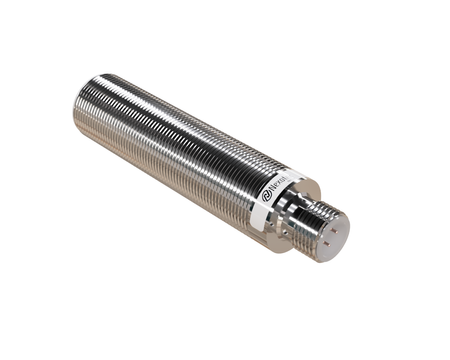

Inductive sensor M18 79 mm connector M12 PNP NO & NC Sn = 12 mm
Symbol:
NIS18446
Inductive sensor M18 79 mm connector M12 PNP NO & NC Sn = 12 mm
- ● M18 allows efficient component arrangement
- ● Extended housing for large installations
- ● Sensor with maximum detection zone
- ● Plug-in – durable for everyday use
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS18446
A Teflon-faced inductive sensor NIS18446 ensures reliable operation in automation and process control systems.
The M18 version was developed for operation in harsh industrial conditions., Konstrukcja Ø18 x 79 mm zwiększa stabilność pracy w warunkach przemysłowych o dużej dynamice.
Technical specification:
- Diameter: M18, reinforced construction for operation in harsh conditions
- Length: 79 mm, designed for demanding operating conditions
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Use in assembly processes and verification of correct part positioning.
- Use in automation of cutting and milling processes.
- Control of production line synchronization.
- Support for synchronization of robots and machines.
- Use in actuator and mechanism control systems.
Features and Benefits
- Signal repeatability in mass production processes
- Compatibility with standard industrial control systems
- High response speed in packaging lines
- High precision positioning of elements in robotic systems
- Versatile use in different OEM machine types
When to choose this model
- Used in 24/7 systems.
- Performs well in heavy-duty applications.
- Suitable for dusty and vibration-heavy conditions.
- Performs well in demanding working conditions.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS18446
Producer code
5907367823578
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M18
Switching distance
12 mm
Mounting
Mounting Flush
Output function
PNP
Switching function
NO & NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,5ms
Switching frequency
300Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES
Dimensions
Ø18 x 79 mm
Sensor length
79 mm
Electrical connection
Connection type
Connector
Connector size
M12
Number of pins
4
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS18446
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
