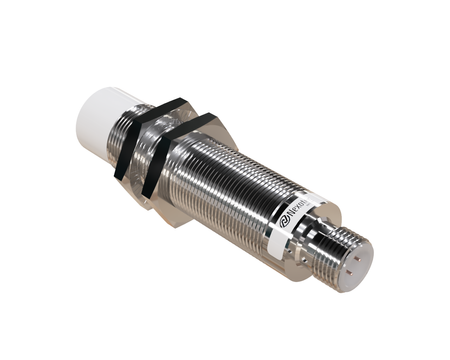

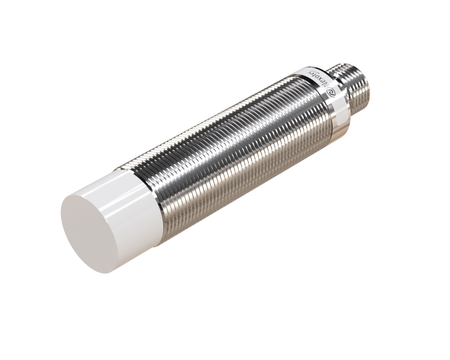

Inductive sensor M18 79 mm connector M12 NPN NO Sn = 16 mm
- ● M18 enables component placement in larger systems
- ● Extended version for stable embedding
- ● Sn distance with extended sensing zone
- ● Plug-in – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS18431 with a PBT sensing face is ideal for applications requiring durability and precise performance.
The M18 inductive sensor is part of an offering for professional automation systems. The larger Ø18 x 79 mm format makes installation easier in places with increased mechanical load.
Technical specification:
- Diameter: M18, reinforced construction for operation in harsh conditions
- Length: 79 mm, used in large industrial installations
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Application in robotized assembly stations.
- Detection of workpieces in machining fixtures.
- Support for automatic packaging systems.
- Position control of grippers and robotic actuators.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Reliable detection of workpiece and tool positions
- Resistance to intensive cyclic operation
- Reliable synchronization of machines and robots
- Resistance to electromagnetic interference
When to choose this model
- Used in large production lines.
- Suitable for intensive operation.
- Used in industrial OEM installations.
- Used in mass production.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
