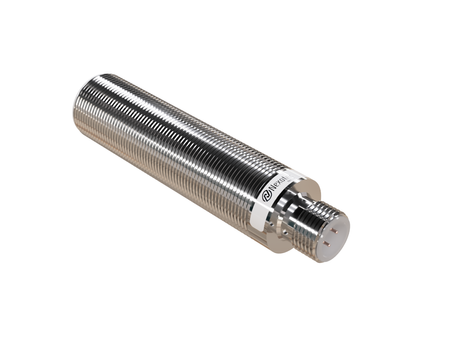

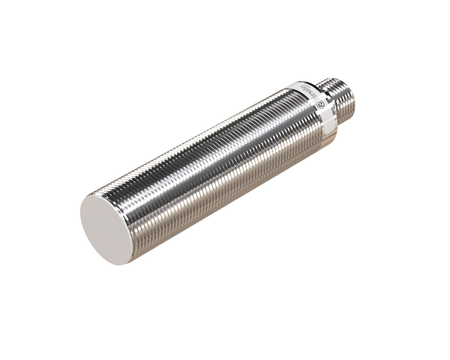

Inductive sensor M18 79 mm connector M12 NPN NO Sn = 15 mm
- ● Large-diameter M18 simplifies installation in bigger systems
- ● Extended module for large machines and production lines
- ● Sensor with high operating range
- ● Plug-in – durable for everyday use
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS18461 with a PBT sensing face combines a compact design with high durability.
This M18 variant is a solution for industries where durability and reliability are essential. The Ø18 x 79 mm size increases positioning stability within the device structure.
Technical specification:
- Diameter: M18, designed for higher-load applications
- Length: 79 mm, better resistance to vibration and stress
- Sensing range: 15 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Operation in high-dynamics industrial environments.
- Detection of product position in packaging processes.
- Detection of elements in robotic work zones.
- Application in machine safety and interlock systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Stable detection in high-throughput processes
- High precision positioning of elements in robotic systems
When to choose this model
- Good for environments with high vibration levels.
- Used in large-scale automation.
- Used in heavy production applications.
- Used in heavy industry installations.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
