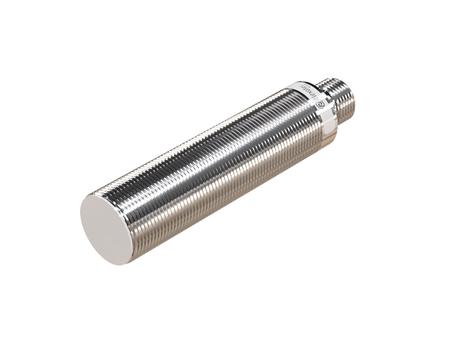

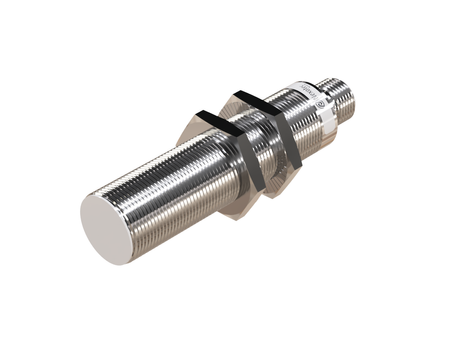

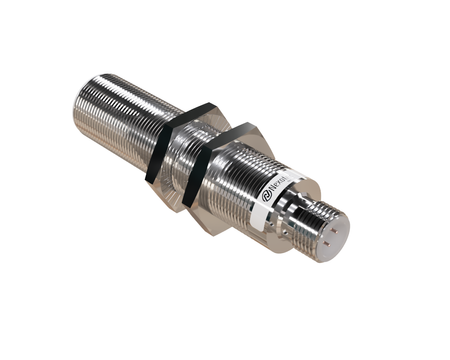

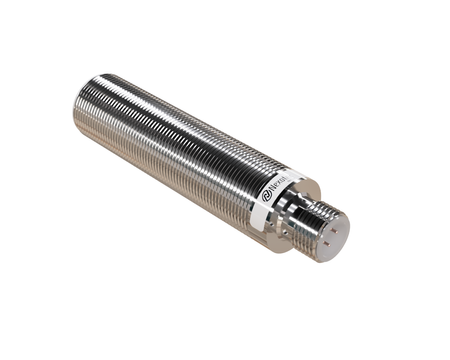

Inductive sensor M18 79 mm connector M12 NPN NO & NC Sn = 8 mm
- ● Large-diameter M18 simplifies installation in bigger systems
- ● Housing for larger industrial installations
- ● Ideal for detection within standard range
- ● Plug-in – nickel-plated brass housing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS18425 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.
This M18 model ensures efficient operation in industrial automation installations. The Ø18 x 79 mm size allows use in applications with longer sensing distances.
Technical specification:
- Diameter: M18, increased resistance to shocks and vibrations
- Length: 79 mm, better resistance to vibration and stress
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Detection of elements in automated vehicle production systems.
- Support for automatic clamping systems.
- Use in automation of packaging and sorting processes.
- Application in robotic systems for detecting element positions.
- Use in mass and custom production systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Reliable detection of workpiece and tool positions
- Reliable operation in automated packaging systems
- High resistance to harsh industrial conditions
When to choose this model
- Used in large production lines.
- Chosen for larger metal parts.
- Good for high-throughput systems.
- Ensures high mounting tolerance.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
