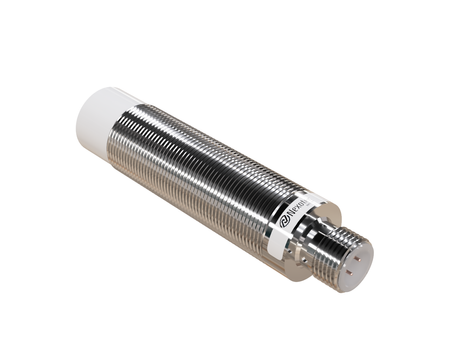

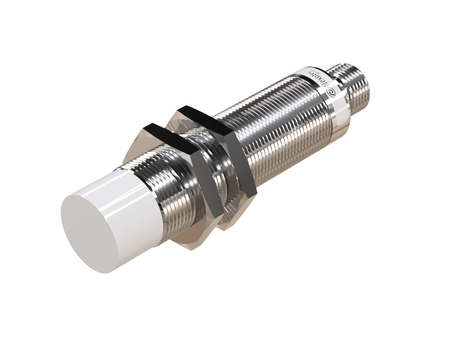

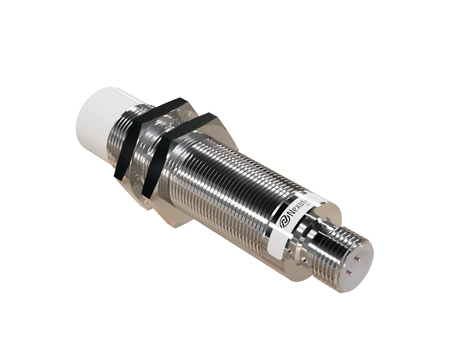

Inductive sensor M18 79 mm connector M12 NPN NO & NC Sn = 8 mm
- ● M18 version simplifies embedding
- ● Long design for wide systems
- ● Optimal distance for standard assemblies
- ● Plug-in – quick installation and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS18415 with a PBT sensing face offers high resistance to external factors and intensive operation.
The M18 product was designed for automation systems with high operational demands. The Ø18 x 79 mm size allows operation in applications requiring more mounting clearance and a more robust housing.
Technical specification:
- Diameter: M18, designed for higher-load applications
- Length: 79 mm, better resistance to vibration and stress
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Use in positioning and production synchronization systems.
- Monitoring of processes in machining centers.
- Use in automation of packaging and sorting processes.
- Use in automation of pick & place processes.
- Support for high-duty cycle equipment operation.
Features and Benefits
- Easy integration with robotic and PLC systems
- Resistance to coolants, oils and industrial contaminants
- Reliable operation in automated packaging systems
- Stable operation in dynamic automation systems
- Stable operation in high-duty cycle machines
When to choose this model
- Used in transport systems and heavy automation.
- Chosen for larger metal parts.
- Suitable for dusty and vibration-heavy conditions.
- Ensures high mounting tolerance.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
