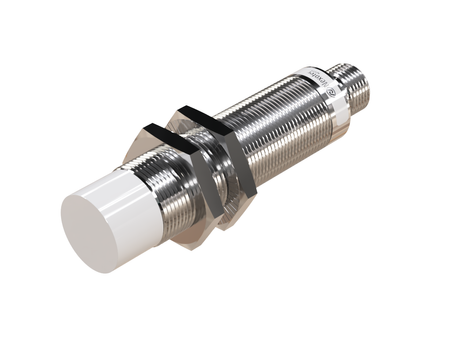

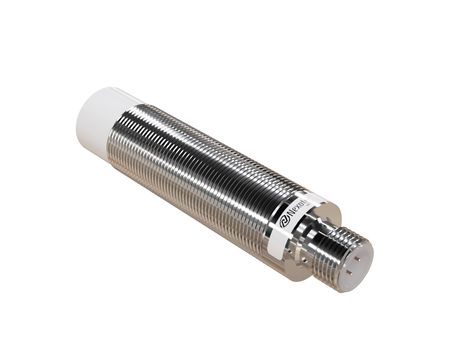

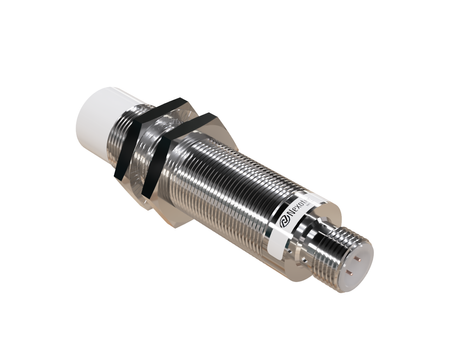

Inductive sensor M18 79 mm connector M12 NPN NO & NC Sn = 16 mm
- ● Large-diameter M18 simplifies installation in bigger systems
- ● Long design for high-space systems
- ● Sensor for remote installations
- ● Plug-in – resistant to moisture and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS18435 for industrial applications with a PBT sensing face stands out for its high mechanical resistance and stable operation.
The M18 sensor fits into a range of products used in production systems. Thanks to its size, the Ø18 x 79 mm sensor copes better with more demanding mounting applications.
Technical specification:
- Diameter: M18, used in heavier industrial automation
- Length: 79 mm, better resistance to vibration and stress
- Sensing range: 16 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Detection of elements in automated vehicle production systems.
- Position control of machine axes and working components.
- Control of production line synchronization.
- Support for synchronization of robots and machines.
- Use in mass and custom production systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- High response speed in packaging lines
- Fast detection in pick & place processes
- High resistance to harsh industrial conditions
When to choose this model
- Used in transport systems and heavy automation.
- Used in 24/7 systems.
- Used in industrial transport lines.
- Used in heavy industry installations.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
