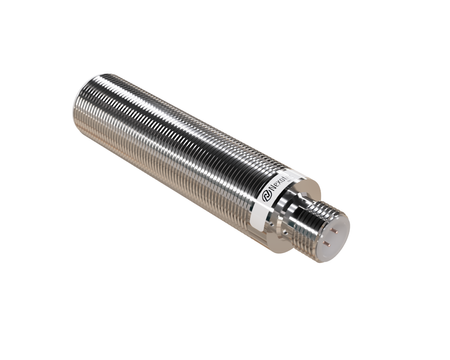

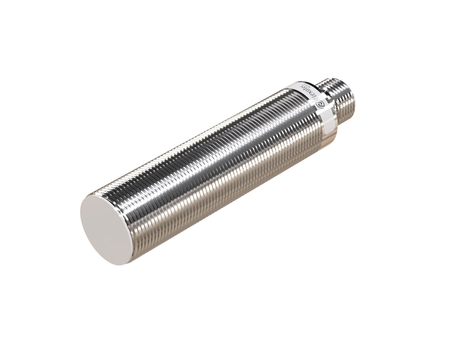

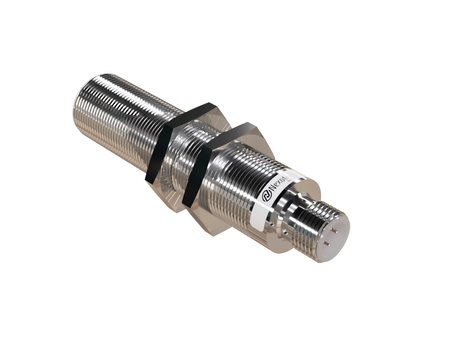

Inductive sensor M18 79 mm connector M12 NPN NO & NC Sn = 12 mm
Symbol:
NIS18445
Inductive sensor M18 79 mm connector M12 NPN NO & NC Sn = 12 mm
- ● M18 ideal for larger mounting spaces
- ● For applications requiring more space
- ● Sn distance for operation at farther distances
- ● Plug-in – durable in harsh environments
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS18445
An inductive sensor NIS18445 with a Teflon sensing face is distinguished by its durability and high-quality construction.
The M18 inductive sensor is part of an offering for professional automation systems., Czujnik Ø18 x 79 mm dzięki swojej wielkości lepiej radzi sobie w bardziej wymagających aplikacjach montażowych.
Technical specification:
- Diameter: M18, designed for higher-load applications
- Length: 79 mm, better resistance to vibration and stress
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in positioning and production synchronization systems.
- Application in material feeding and unloading systems.
- Detection of product position in packaging processes.
- Application in integration of industrial automation systems.
- Application in machine safety and interlock systems.
Features and Benefits
- High reliability in automated automotive production lines
- Stable operation in CNC machines and automation systems
- High response speed in packaging lines
- High resistance to harsh industrial conditions
When to choose this model
- Good for environments with high vibration levels.
- Used in large-scale automation.
- Used in industrial OEM installations.
- Used in heavy industry installations.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS18445
Producer code
5907367823561
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M18
Switching distance
12 mm
Mounting
Mounting Flush
Output function
NPN
Switching function
NO & NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,5ms
Switching frequency
300Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES
Dimensions
Ø18 x 79 mm
Sensor length
79 mm
Electrical connection
Connection type
Connector
Connector size
M12
Number of pins
4
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS18445
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
