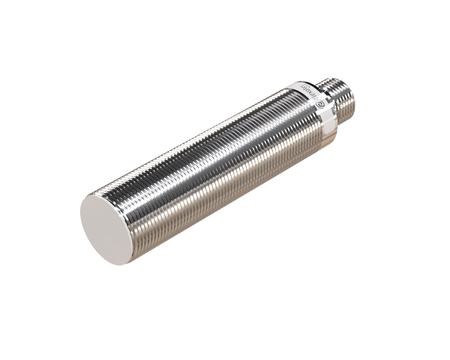

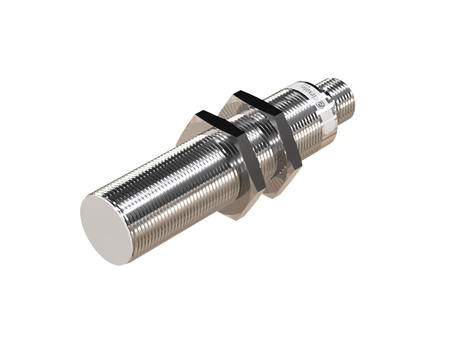

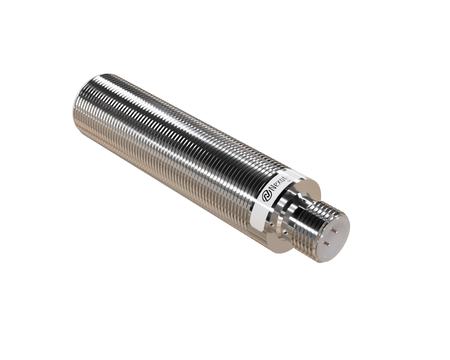

Inductive sensor M18 79 mm connector M12 NPN NC Sn = 8 mm
- ● M18 allows convenient system layout planning
- ● Enlarged enclosure for stable mounting
- ● Classic detection range in industrial practice
- ● Plug-in – precise in challenging applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A professional inductive sensor NIS18422 with a PBT sensing face performs exceptionally well in applications requiring high reliability.
A product in the M18 standard is an element of detection systems used in industry and production. The Ø18 x 79 mm format allows operation in environments with increased vibration and load levels.
Technical specification:
- Diameter: M18, used in heavier industrial automation
- Length: 79 mm, better resistance to vibration and stress
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NC, used in safety functions
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Use in positioning and production synchronization systems.
- Support for automatic clamping systems.
- Operation in high-speed packaging production cycles.
- Operation in modern production robotization systems.
- Control of processes in complex mechanical systems.
Features and Benefits
- High reliability in automated automotive production lines
- Reliable operation in automated packaging systems
- Fast detection in pick & place processes
- Versatile use in different OEM machine types
When to choose this model
- Used in transport systems and heavy automation.
- Performs well in heavy-duty applications.
- Used in industrial transport lines.
- Used in high-load systems.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
