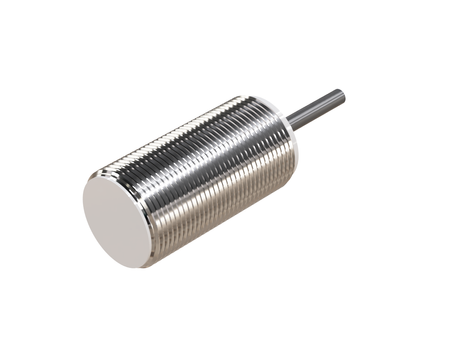

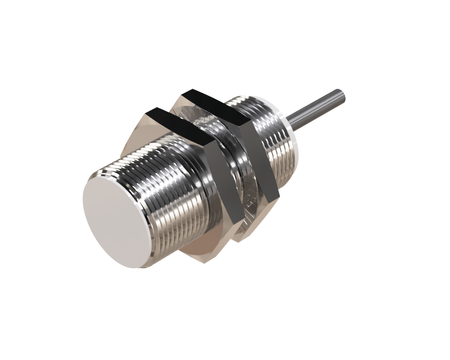

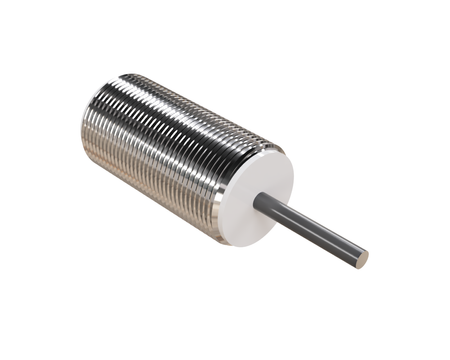

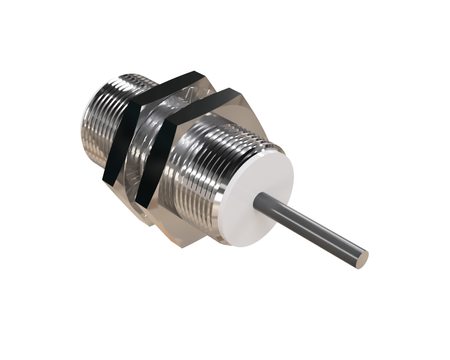

Inductive sensor M18 35 mm cable 3m PNP NO & NC Sn = 12 mm
- ● M18 allows easy installation
- ● Threaded M18 housing for mounting in a hole or bracket
- ● Sensor for long-range applications
- ● With cable – easy installation and setup
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A compact inductive sensor NIS18046-K3 with a PBT sensing face is a reliable solution for control systems and production lines.
The M18 sensor ensures stable operation in control systems and industrial applications. The Ø18 x 35 mm housing provides more secure fixing in installations exposed to vibration.
Technical specification:

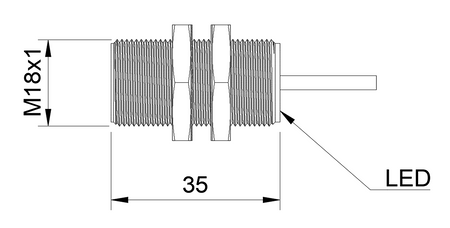

- Diameter: M18, reinforced construction for operation in harsh conditions
- Length: 35 mm, universal dimensions for most applications
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: 3 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Application in robotized assembly stations.
- Application in tool change and positioning systems.
- Support for automatic packaging systems.
- Use in automatic assembly systems.
- Application in OEM machine automation.
Features and Benefits
- Resistance to vibrations and intensive operation
- Reliable detection of workpiece and tool positions
- Precise synchronization of production processes
- Resistance to frequent cycles and micro-vibrations
- High resistance to harsh industrial conditions
When to choose this model
- Used in 24/7 systems.
- Used in large-scale automation.
- Used in heavy production applications.
- Good for applications requiring stability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
