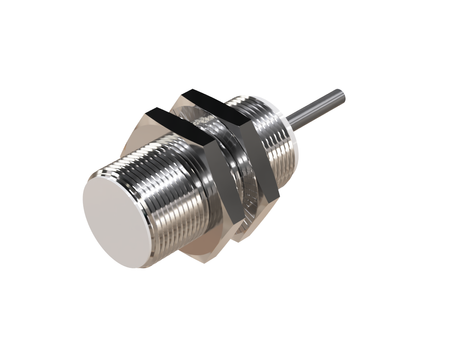

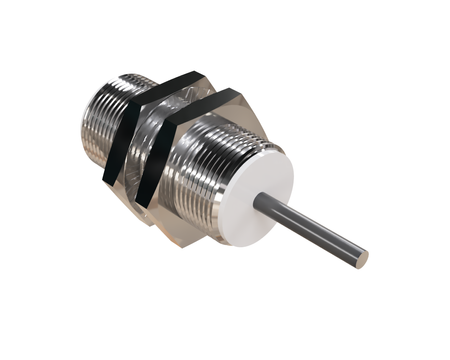

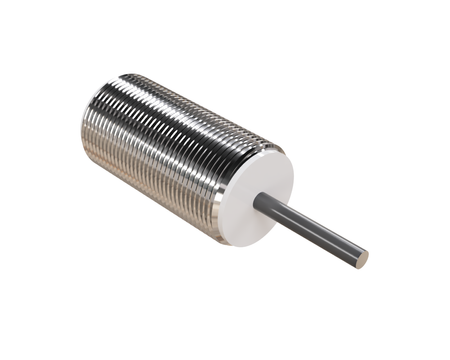

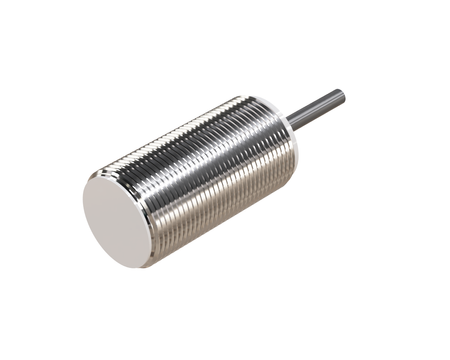

Inductive sensor M18 35 mm cable 3m PNP NC Sn = 12 mm
- ● M18 allows easy installation
- ● Compact housing for small systems
- ● Sn distance for long-distance detection
- ● With cable – quick connection in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS18044-K3 with a PBT sensing face is a modern industrial automation component that ensures stable operation and high wear resistance.
The M18 model is part of a line of sensors used in automation and process control. The Ø18 x 35 mm design increases operational stability in highly dynamic industrial conditions.
Technical specification:

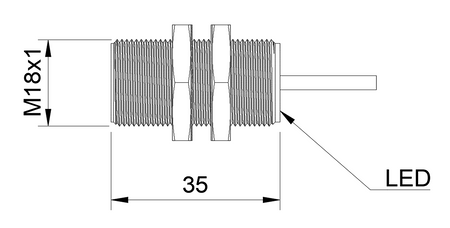

- Diameter: M18, increased resistance to shocks and vibrations
- Length: 35 mm, universal dimensions for most applications
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NC, used in safety functions
- Cable length: 3 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Monitoring of component presence in production transport systems.
- Use in automation of cutting and milling processes.
- Operation in high-speed packaging production cycles.
- Application in robotic systems for detecting element positions.
- Control of processes in complex mechanical systems.
Features and Benefits
- High reliability in automated automotive production lines
- Stable operation in CNC machines and automation systems
- Reliable synchronization of machines and robots
When to choose this model
- Used in 24/7 systems.
- Suitable for large production machines.
- Good for systems requiring durability.
- Suitable for long continuous operation.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
