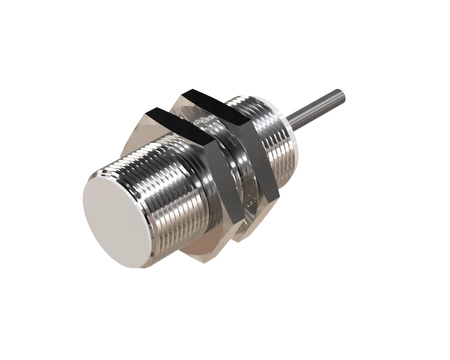

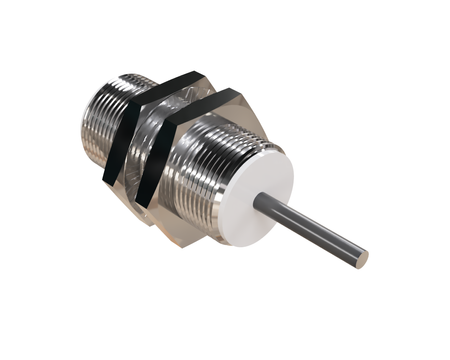

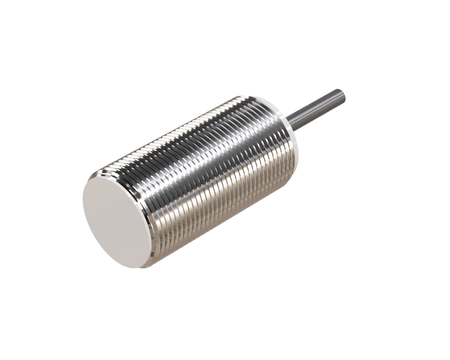

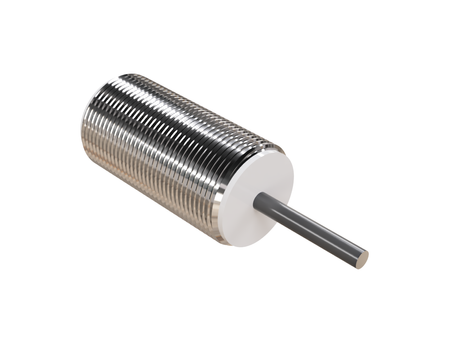

Inductive sensor M18 35 mm cable 2m PNP NO Sn = 12 mm
- ● M18 version simplifies embedding
- ● Compact housing for small systems
- ● Sensor for detection over larger areas
- ● With cable – quick connection in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS18043-K2
An inductive sensor NIS18043-K2 with a Teflon sensing face is distinguished by its durability and high-quality construction.
The M18 model represents a line of sensors for demanding production applications., Czujniki Ø18 x 35 mm dzięki gabarytom oferują zwiększoną powierzchnię aktywną i stabilniejsze działanie.
Technical specification:

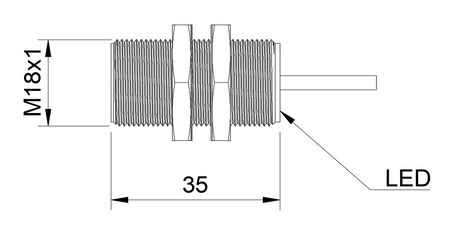

- Diameter: M18, used in heavier industrial automation
- Length: 35 mm, good balance between size and durability
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: 2 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Quality and presence control of elements in production processes.
- Application in material feeding and unloading systems.
- Use in automation of packaging and sorting processes.
- Use in automation of pick & place processes.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Precise detection of metal components in assembly processes
- Resistance to coolants, oils and industrial contaminants
- Reliable operation in automated packaging systems
- High precision positioning of elements in robotic systems
- Long service life in continuous operation
When to choose this model
- Suitable for harsher industrial conditions.
- Used in large-scale automation.
- Suitable for dusty and vibration-heavy conditions.
- Used in high-load systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
