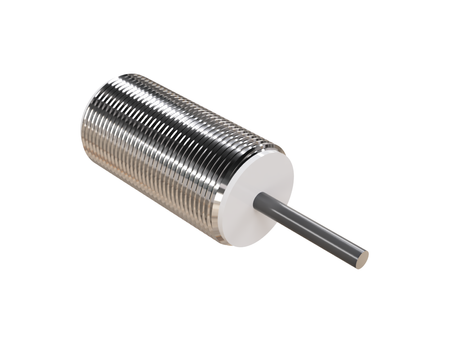

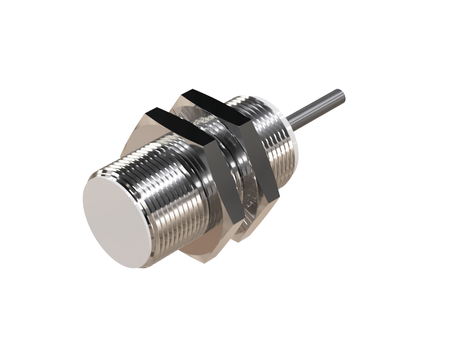

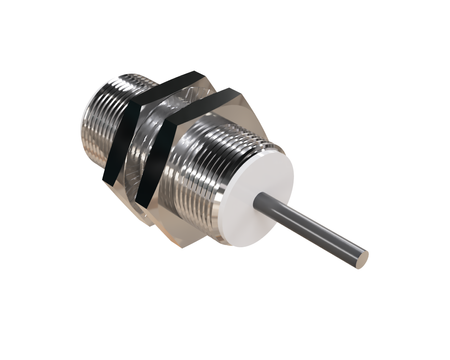

Inductive sensor M18 35 mm cable 2m PNP NO & NC Sn = 12 mm
- ● Compact M18 facilitates layout planning
- ● Short housing for densely packed assemblies
- ● Sensor with greater detection distance
- ● With cable – stable under temperature variations
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS18046-K2
A modern inductive sensor NIS18046-K2 with a Teflon coating provides a long service life in demanding industrial environments.
The M18 sensor ensures continuous operation in control and process monitoring systems., Rozmiar Ø18 x 35 mm poprawia odporność na drgania i wpływa na trwałość montażu w środowisku przemysłowym.
Technical specification:
- Diameter: M18, used in heavier industrial automation

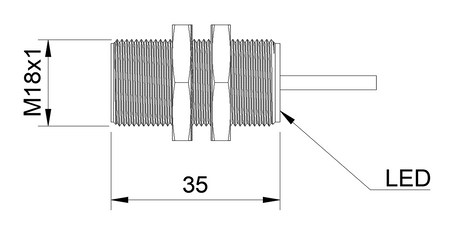

- Length: 35 mm, easy integration with mounting systems
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: 2 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Position control of parts in automotive assembly lines.
- Position control of machine axes and working components.
- Application in forming and sealing machines.
- Use in automation of pick & place processes.
- Support for high-duty cycle equipment operation.
Features and Benefits
- Stable operation in CNC machines and automation systems
- Resistance to frequent cycles and micro-vibrations
- High resistance to harsh industrial conditions
When to choose this model
- Used in 24/7 systems.
- Suitable for large production machines.
- Used in industrial OEM installations.
- Used in mass production.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
