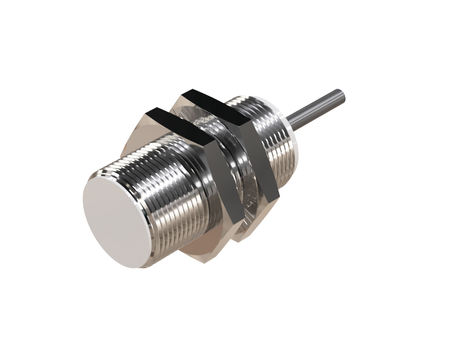

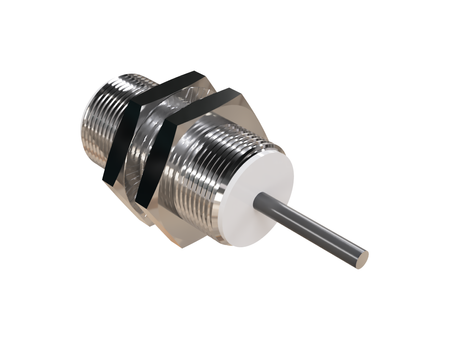

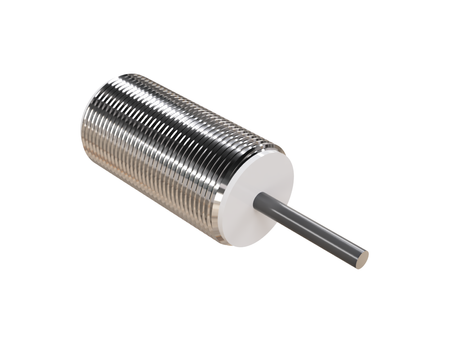

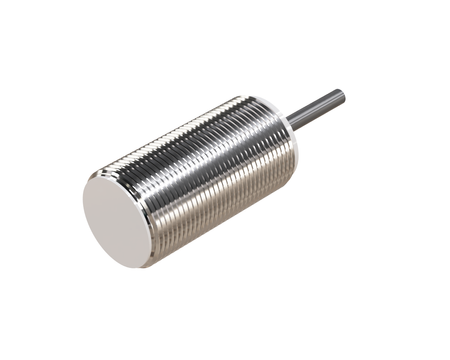

Inductive sensor M18 35 mm cable 2m PNP NC Sn = 12 mm
- ● Compact M18 facilitates layout planning
- ● Short housing for densely packed assemblies
- ● Sensor for detection over larger areas
- ● With cable – quick connection in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A versatile inductive sensor NIS18044-K2 with a PBT sensing face combines durability, a compact design, and reliable performance.

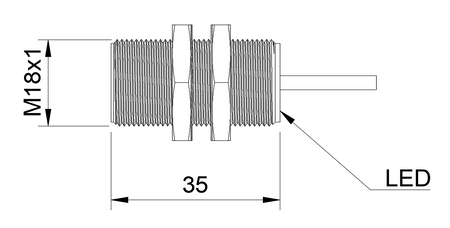

The M18 sensor fits into a range of products used in production systems. The Ø18 x 35 mm diameter provides a larger mounting surface, which results in stable seating of the sensor in the structure.
Technical specification:
- Diameter: M18, reinforced construction for operation in harsh conditions
- Length: 35 mm, universal dimensions for most applications
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: Flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: 2 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Use in assembly processes and verification of correct part positioning.
- Position control of machine axes and working components.
- Application in forming and sealing machines.
- Control of cycle operation in automated production lines.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Precise detection of metal components in assembly processes
- Stable operation in CNC machines and automation systems
- Easy integration with dosing and labeling machines
- High precision positioning of elements in robotic systems
- Long service life in continuous operation
When to choose this model
- Used in 24/7 systems.
- Performs well in heavy-duty applications.
- Ensures reliability in demanding environments.
- Used in high-load systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
