Inductive sensor M12 Metal face 68 mm connector M12 PNP NC Sn = 6 mm
- ● M12 for operation in harsh industrial environments
- ● Long version for expanded systems
- ● Sensor with long operating distance
- ● Resistant to mechanical stress
- ● Plug-in version – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

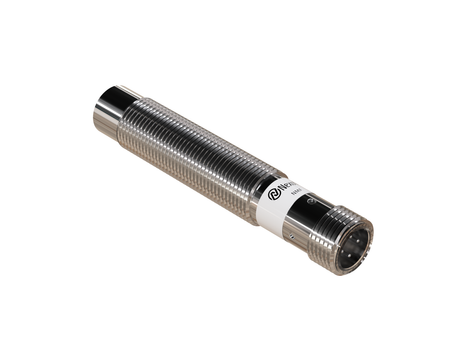

An industrial all-metal inductive proximity sensor with a stainless steel face combines robust construction, superior durability, and excellent resistance to external damage.

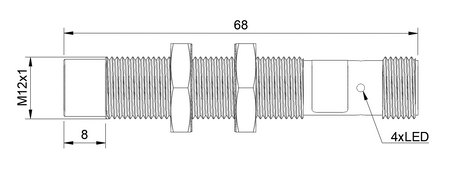

The M12 all-metal inductive sensor is designed for control systems that require stable performance, precise detection, and protection against mechanical damage. Ø12 x 68 mm dimensions ensure stable positioning and secure mounting within machine structures.
Technical specification:
- Diameter: M12, increased sensing area for improved detection performance
- Length: 68 mm, designed for reliable operation in demanding industrial environments
- Sensing range: 6 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, larger lateral sensing field for improved object detection capability
- Switching function: NC, normally closed (NC) output state in idle condition
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- They enhance quality control through reliable part presence detection and inspection processes.
- Ensures accurate positioning of machine axes and moving machine components.
- Detects metal objects and components in packaging systems.
- Detects the presence of components within robotic work zones.
- Monitors the position of components in special-purpose machines.
Features & Benefits
- Precise detection of metal components in assembly processes.
- Reliable detection of workpiece and tool positions.
- Stable detection in high-throughput production processes.
- Fast detection in pick-and-place processes.
- High resistance to harsh industrial conditions.
When to choose this model
- Ideal for demanding industrial applications requiring reliable long-distance metal detection.
- Performs reliably in 24/7 production lines and high-duty-cycle automation systems.
- Frequently applied in heavy manufacturing automation where rugged construction is required.
- Used in serial production processes requiring consistent and repeatable detection.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
