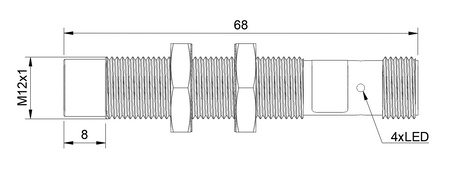

Inductive sensor M12 Metal face 68 mm connector M12 PNP NC Sn = 4 mm
- ● Compact yet resistant cylindrical M12
- ● Long version for large-scale systems
- ● Proven sensing range for general use
- ● Full metal design – maximum durability
- ● Plug-in version – moisture and dust resistant
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NMF12114
An inductive sensor NMF12114 with a stainless steel sensing face is a proven solution for applications requiring high resistance to abrasion, impact, welding spatter, and mechanical stress.
This M12 model is part of a sensor series designed for applications requiring durability, accuracy, repeatable performance, and resistance to external damage., Ø12 x 68 mm sensors perform effectively in standard industrial configurations and typical mounting applications.
Technical specification:
- Diameter: M12, stable and reliable operation in demanding industrial environments
- Length: 68 mm, extended housing with increased mechanical rigidity
- Sensing range: 4 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, requires clearance from surrounding metal mounting surfaces
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations in control circuits
Applications
- They provide accurate object detection in automated vehicle manufacturing systems.
- Monitors machining processes in CNC machining centers.
- Integrated into packaging forming and sealing machines.
- Supports the automation of pick-and-place processes.
- Delivers reliable performance in demanding industrial environments requiring high operational reliability.
Features & Benefits
- Easy integration with robotic systems and PLC control systems.
- Reliable detection of workpiece and tool positions.
- Compact design enabling installation in space-limited applications.
- Resistance to frequent operating cycles and micro-vibrations.
- Reliable performance in safety and control systems.
When to choose this model
- Ideal for demanding industrial applications requiring reliable long-distance metal detection.
- Ensures stable operation under changing environmental conditions and industrial stress.
- Frequently applied in heavy manufacturing automation where rugged construction is required.
- Ideal for multi-point detection systems installed in demanding industrial environments.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
