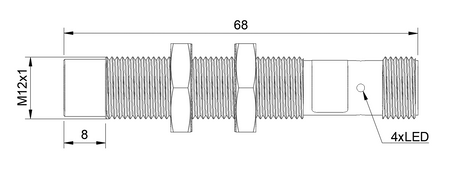

Inductive sensor M12 Metal face 68 mm connector M12 NPN NC Sn = 6 mm
- ● Heavy-duty metal M12 for demanding applications
- ● Long housing for wide installation setups
- ● Sensor with long sensing distance
- ● Long service life in industry
- ● Plug-in version – resistant to dirt and dust
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A professional inductive sensor NMF12152 with a stainless steel sensing face is perfectly suited for industrial applications requiring maximum durability, protection, and operational reliability.
The M12 model ensures reliable operation in production facilities and industrial control applications exposed to intensive use and harsh environmental conditions. Ø12 x 68 mm sensors offer universal dimensions suitable for common industrial installations and automation systems.
Technical specification:
- Diameter: M12, increased sensing area for improved detection performance
- Length: 68 mm, larger threaded mounting surface for secure installation
- Sensing range: 6 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NC, switching off the output when an object is detected
- Cable length: n/d
- Supply voltage: DC 10-30V, compatibility with PLC control systems and industrial automation networks
Applications
- They deliver reliable performance in demanding automotive and industrial manufacturing environments.
- Used in automated material feeding and handling systems.
- Used in packaging lines for reliable product presence detection.
- Integrated into automated assembly and manufacturing systems.
- Monitors processes in complex mechanical and automated systems.
Features & Benefits
- Easy integration with robotic systems and PLC control systems.
- Reliable detection of workpiece and tool positions.
- Compact design enabling installation in space-limited applications.
- Reliable synchronization of machine and robot operation.
- Easy adaptation to different machine designs.
When to choose this model
- Provides increased mechanical resistance thanks to its durable all-metal sensor housing.
- Used in applications where long service life, wear resistance, and mechanical durability are essential.
- Provides an excellent balance of extended sensing range, durability, and operational stability.
- Used in serial production processes requiring consistent and repeatable detection.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
