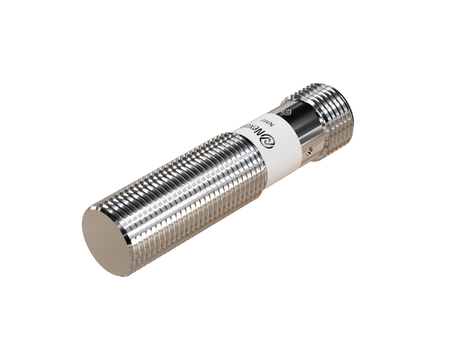

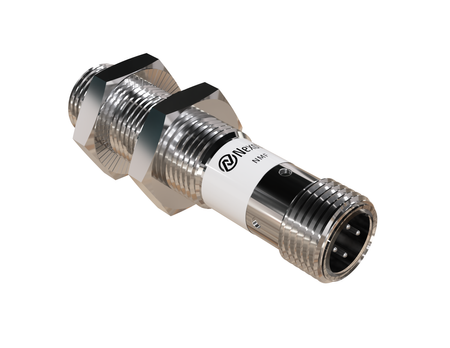

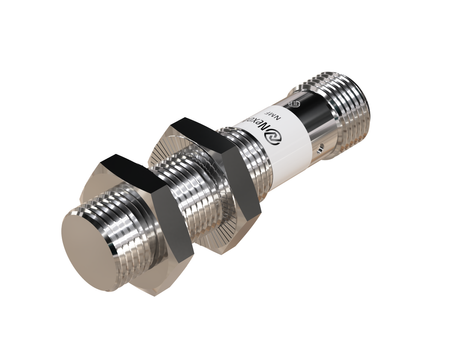

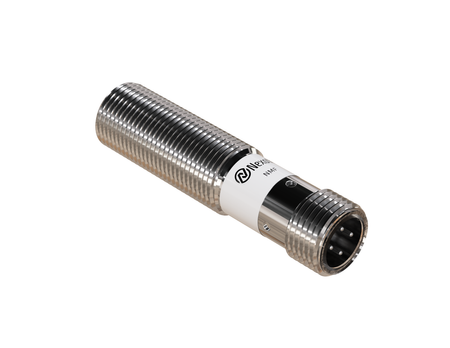

Inductive sensor M12 Metal face 50 mm connector M12 PNP NC Sn = 4 mm
- ● All-metal M12 ideal for machines and production lines
- ● Compact housing for tight mounting spaces
- ● Ideal for standard detection distances
- ● Reliable in demanding conditions
- ● Plug-in version – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial automation inductive sensor NMF12164 with a stainless steel face provides stable long-term performance in demanding applications exposed to heat, contamination, and mechanical loads.
This M12 inductive sensor has been engineered for seamless integration into industrial automation and process control systems where durability and long service life are essential. The universal Ø12 x 50 mm size simplifies integration into a wide variety of machine designs and automation systems.
Technical specification:

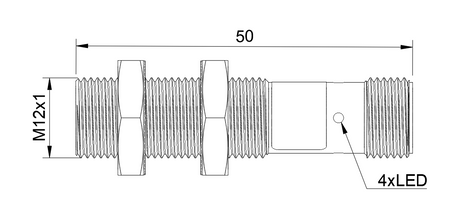

- Diameter: M12, extended detection range compared to smaller sensor models
- Length: 50 mm, universal dimensions suitable for a wide range of industrial applications
- Sensing range: 4 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Flush mounting, lush-mounted sensor face aligned with the mounting surface
- Switching function: NC, switching off the output when an object is detected
- Cable length: n/d
- Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
- They monitor component presence in industrial conveyor and material handling systems.
- Ensures accurate positioning of machine axes and moving machine components.
- Monitors the operation of labeling and dispensing machines.
- Integrated into automated assembly and manufacturing systems.
- Supports equipment operating under high-duty cycle conditions.
Features & Benefits
- Resistance to vibration and intensive industrial operation.
- Compatibility with standard industrial control systems.
- Resistance to intensive cyclic operation.
- High positioning accuracy of components in robotic systems.
- Easy adaptation to different machine designs.
When to choose this model
- Used in manufacturing automation, logistics systems, and industrial material handling applications.
- Suitable for mid-range OEM machines requiring robust and reliable sensor technology.
- Suitable for installations requiring greater mounting flexibility and mechanical tolerance.
- Designed for environments with increased production intensity and continuous machine operation.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
