Inductive sensor M12 Metal face 50 mm cable 3m PNP NO Sn = 4 mm
- ● Metal M12 for demanding applications
- ● Short housing for small-scale installations
- ● Comfortable range for everyday use
- ● Full metal design – maximum durability
- ● Cable version – performs in harsh conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial all-metal inductive proximity sensor with a stainless steel face combines robust construction, superior durability, and excellent resistance to external damage.
This M12 model is part of a sensor series designed for applications requiring durability, accuracy, repeatable performance, and resistance to external damage. The Ø12 x 50 mm size delivers reliable stability without requiring excessive mounting space.

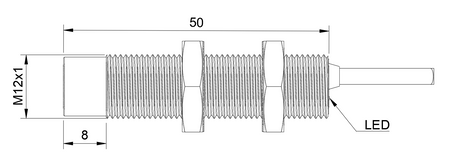

Technical specification:
- Diameter: M12, high mechanical resistance of the cylindrical sensor housing
- Length: 50 mm, stable mechanical construction for reliable operation
- Sensing range: 4 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, extended sensing range and maximum detection distance
- Switching function: NO, output activated when an object is detected
- Cable length: 3 m
- Supply voltage: DC 10-30V, stable operation in DC-powered automation applications
Applications
- They are widely used in robotic assembly cells and automated manufacturing workstations.
- Ensures accurate positioning of machine axes and moving machine components.
- Used in packaging conveyor and material handling systems.
- Integrated into automated assembly and manufacturing systems.
- Supports equipment operating under high-duty cycle conditions.
Features & Benefits
- Resistance to vibration and intensive industrial operation.
- Reliable detection of workpiece and tool positions.
- Stable detection in high-throughput production processes.
- Compatibility with industrial robots and EOAT (End-of-Arm Tooling) systems.
- Easy adaptation to different machine designs.
When to choose this model
- Provides increased mechanical resistance thanks to its durable all-metal sensor housing.
- Ideal for larger industrial machines and heavy-duty automation equipment.
- Frequently applied in heavy manufacturing automation where rugged construction is required.
- Ideal for multi-point detection systems installed in demanding industrial environments.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
