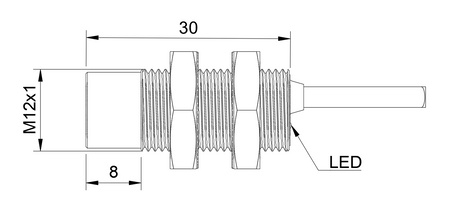

Inductive sensor M12 Metal face 30 mm cable 3m PNP NO Sn = 4 mm
- ● Inductive M12 in a metal version for automation systems
- ● Compact housing for tight mounting spaces
- ● Balanced distance for reliable performance
- ● Metal front ensures durability
- ● Cable version – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An all-metal inductive sensor NMF12333 with a stainless steel sensing face stands out for its rugged construction, extended lifespan, and exceptional resistance to industrial wear.
The M12 all-metal sensor represents a product line dedicated to precision object detection in industrial environments with demanding operating conditions. Ø12 x 30 mm sensors perform effectively in standard industrial configurations and typical mounting applications.
Technical specification:
- Diameter: M12, stable and reliable operation in demanding industrial environments
- Length: 30 mm, tandard housing length used in industrial inductive sensors
- Sensing range: 4 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, full exposure of the sensing area for maximum detection performance
- Switching function: NO, output activated when an object is detected
- Cable length: 3 m
- Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
- They are integrated into positioning, synchronization, and industrial automation systems.
- Detects the presence of workpieces in machining fixtures and clamping systems.
- Supports automatic packaging machines and automated packing systems.
- Used in robotic systems for precise position monitoring of components.
- Integrated into machine safety systems and interlock applications.
Features & Benefits
- Stable operation in high-speed and dynamic production environments.
- High mechanical resistance in demanding operating conditions.
- Compact design enabling installation in space-limited applications.
- High positioning accuracy of components in robotic systems.
- Resistance to electromagnetic interference.
When to choose this model
- Suitable for industrial environments with moderate to challenging operating conditions.
- Suitable for reliable detection of larger metal components and machine elements.
- Frequently applied in heavy manufacturing automation where rugged construction is required.
- A universal all-metal sensor solution for medium-demanding applications requiring extended detection range, high mechanical strength, and long-term reliability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
