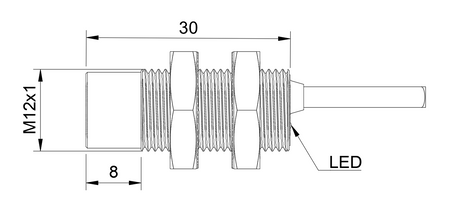

Inductive sensor M12 Metal face 30 mm cable 3m PNP NC Sn = 4 mm
- ● Compact yet resistant cylindrical M12
- ● For mounting in hard-to-reach areas
- ● Effective sensing zone in typical conditions
- ● Industrial-grade metal housing
- ● Cable version – for demanding environments
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial all-metal inductive proximity sensor with a stainless steel face combines robust construction, superior durability, and excellent resistance to external damage.
The industrial M12 sensor is part of a product range developed for modern manufacturing and automation installations requiring reliable and wear-resistant components. Ø12 x 30 mm sensors offer universal dimensions suitable for common industrial installations and automation systems.
Technical specification:
- Diameter: M12, extended detection range compared to smaller sensor models
- Length: 30 mm, easy integration with standard mounting systems and fixtures
- Sensing range: 4 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, requires clearance from surrounding metal mounting surfaces
- Switching function: NC, normally closed (NC) output state in idle condition
- Cable length: 3 m
- Supply voltage: DC 10-30V, compatibility with PLC control systems and industrial automation networks
Applications
- They enhance quality control through reliable part presence detection and inspection processes.
- Ensures accurate positioning of machine axes and moving machine components.
- Delivers reliable performance in high-speed packaging and processing environments.
- Supports synchronization between robots and industrial machines.
- Supports equipment operating under high-duty cycle conditions.
Features & Benefits
- High signal repeatability in serial production processes.
- Resistance to coolants, oils, and industrial contaminants.
- High response speed in packaging lines.
- Fast detection in pick-and-place processes.
- Versatile application across various types of OEM equipment.
When to choose this model
- Provides increased mechanical resistance thanks to its durable all-metal sensor housing.
- Performs reliably in 24/7 production lines and high-duty-cycle automation systems.
- Provides an excellent balance of extended sensing range, durability, and operational stability.
- Suitable for applications requiring stable operation over long production cycles.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
