Inductive sensor M12 Metal face 30 mm cable 2m PNP NC Sn = 6 mm
- ● Compact yet resistant cylindrical M12
- ● Compact housing for tight mounting spaces
- ● Sensor with long operating distance
- ● Long service life in industry
- ● Cable version – simple setup and commissioning
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A stainless steel all-metal inductive sensor NMF12074 is engineered for extended service life in harsh industrial environments exposed to impacts, contamination, and extreme operating conditions.

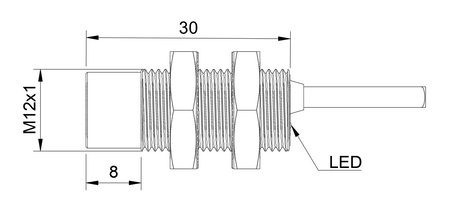

The M12 all-metal sensor represents a product line dedicated to precision object detection in industrial environments with demanding operating conditions. The Ø12 x 30 mm diameter provides an excellent balance between compact dimensions and reliable mounting stability.
Technical specification:
- Diameter: M12, high mechanical resistance of the cylindrical sensor housing
- Length: 30 mm, stable mechanical construction for reliable operation
- Sensing range: 6 mm
- Housing: Threaded sensor
- Housing material: Stainless steel housing
- Sensor face material: Stainless steel housing
- Mounting: Non-flush mounting, larger lateral sensing field for improved object detection capability
- Switching function: NC, continuous signal monitoring within the control system
- Cable length: 2 m
- Supply voltage: DC 10-30V, standard power supply range for industrial sensors
Applications
- They are widely used in robotic assembly cells and automated manufacturing workstations.
- Supports the automation of cutting, milling, and machining processes.
- Ensures synchronization of components in production and packaging lines.
- Supports synchronization between robots and industrial machines.
- Supports actuator control systems and industrial mechanical assemblies.
Features & Benefits
- High reliability in automated automotive production lines.
- High detection accuracy in machining environments.
- Stable detection in high-throughput production processes.
- Stable operation in dynamic automation environments.
- Stable operation in machines with high cyclic loads.
When to choose this model
- Used where an extended sensing range is required compared to standard sensor models.
- Suitable for mid-range OEM machines requiring robust and reliable sensor technology.
- Suitable for medium- and large-scale automation systems requiring high reliability.
- A universal all-metal sensor solution for medium-demanding applications requiring extended detection range, high mechanical strength, and long-term reliability.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
