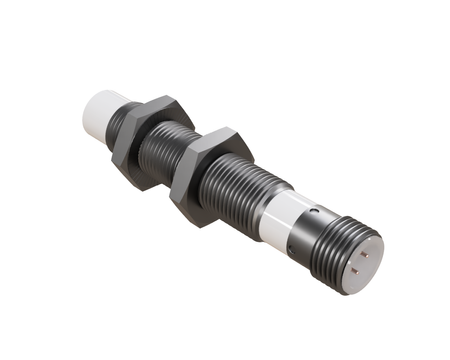

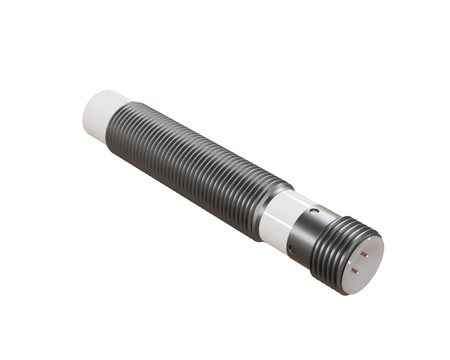

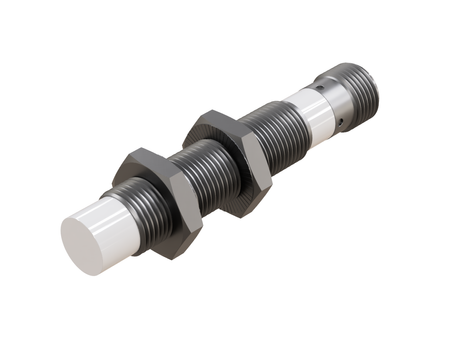

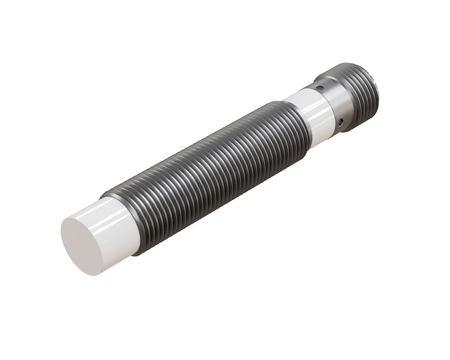

Inductive sensor M12 for welding process 68 mm connector M12 PNP NC Sn = 4 mm

The NWI12114 inductive sensor for welding robots is a robust component of modern automation systems, delivering stable performance in Heavy Duty applications.

The M12 sensor works well as a universal solution for most welding and resistance-welding stations, Ø12 x 68 mm is a format well matched to the typical mounting brackets used at welding stations.

Technical specification:

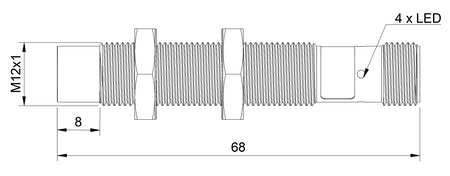

• Diameter: M12, a good compromise between size and detection range in welding applications
• Length: 68 mm, an extended housing that provides extra mounting rigidity under harsh welding conditions
• Detection range: 4 mm, stable metal-detection characteristics even close to a resistance-welding machine's electromagnetic field
• Housing: Threaded, a threaded housing allows precise adjustment of the sensor's position relative to the weld point
• Housing material: Brass with PTFE coating, a PTFE layer on the brass housing reduces weld spatter sticking to the sensor's surface
• Sensor face material: PTFE, a PTFE sensing face prevents metal spatter from welding and resistance welding from sticking
• Mounting: Non-flush mounting, non-flush mounting provides a longer detection range when adequate mounting space is available
• Switching function: normally closed (NC), a normally-closed function useful in the safety circuits of welding stations
• Output type: PNP, the PNP output type simplifies integration with the safety modules of resistance-welding robots
• Connection: with a M12 plug connector, the plug connector simplifies servicing on the production line, reducing downtime at the resistance-welding station
• Supply voltage: DC 10-30V, a typical industrial automation supply voltage, with no need for additional converters
• Electromagnetic interference (EMC) resistance: yes, proven resistance to the electromagnetic interference generated by resistance-welding machines and welding robots
• Catalog number: W1CN-M1204P-CEU4

Applications

• It is used in welding automation systems and resistance welding automation systems as a feedback element for the PLC controller.
• It is a component of welding process control systems and resistance welding process control systems, confirming the presence and position of parts.
• It is used in automated welding systems and automated resistance welding systems operating continuously.
• It performs well in robotic welding systems and robotic welding lines, where robots operate without constant operator supervision.
• It supports the operation of smart welding lines and smart welding stations integrated with higher-level control systems.

Benefits/Features

• Proven to be resistant to electromagnetic fields, it operates reliably even in the immediate vicinity of the coils and current-carrying cables of a welding machine.
• It is suited to operation in a strong electromagnetic field, typical of resistance welding and arc welding.
• Its proven EMC resistance is valued by integrators building EMC-resistant industrial sensors for welding and resistance-welding applications.
• Thanks to its high resistance, it performs well in environments with high levels of electromagnetic interference, such as those generated by welding machines.
• It can be used as a welding machine sensor resistant to interference and a resistance welding machine sensor resistant to electromagnetic interference.

When to choose this model

• When part-position monitoring is required during automated welding.
• If the application involves automatic spot welding and component-position monitoring.
• When the sensor must confirm part presence before a welding operation is performed.
• When the process requires the use of an industrial proximity sensor resistant to harsh conditions.
