Inductive sensor M12 68 mm connector M12 NPN NO Sn = 4 mm
- ● M12 allows convenient system layout planning
- ● Modular housing for wide panels
- ● Comfortable detection range for common processes
- ● Plug-in – performs well in demanding conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12421 with a PBT sensing face is a robust component for modern automation systems.
The M12 inductive sensor is a component of industrial automation systems with wide application range. Ø12 x 68 mm is a size enabling quick and trouble-free installation.
Technical specification:

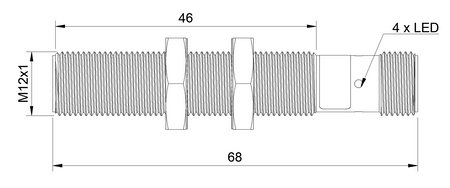

- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 68 mm, better resistance to vibration and stress
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Operation in demanding industrial automotive environments.
- Monitoring of processes in machining centers.
- Control of production line synchronization.
- Application in robotic systems for detecting element positions.
- Application in OEM machine automation.
Features and Benefits
- Precise detection of metal components in assembly processes
- Reliable operation in automated packaging systems
- High precision positioning of elements in robotic systems
- Stable operation in high-duty cycle machines
When to choose this model
- Used in production systems with higher load.
- Good for larger industrial machines.
- Suitable for medium and large-scale systems.
- Ensures good balance of parameters.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
