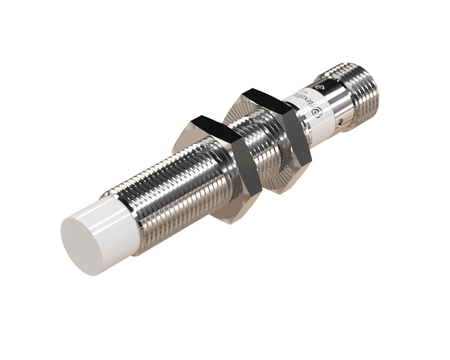

Inductive sensor M12 68 mm connector M12 NPN NO Sn = 12 mm
- ● M12 allows convenient system layout planning
- ● Long version for open mounting areas
- ● Sensor for long-range detection
- ● Plug-in – quick installation and connection
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A durable inductive sensor NIS12471 with a PBT sensing face is widely used in modern industrial installations.
The M12 sensor belongs to a group of solutions designed for modern industrial systems. Ø12 x 68 mm sensors, thanks to their size, are easy to install and adjust.
Technical specification:
- Diameter: M12, longer detection range compared to smaller models
- Length: 68 mm, used in large industrial installations
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO, normally open state at rest
- Cable length: n/d
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Operation in demanding industrial automotive environments.
- Position control of machine axes and working components.
- Use in automation of packaging and sorting processes.
- Application in robotic axis positioning systems.
- Control of processes in complex mechanical systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Easy integration with dosing and labeling machines
- High resistance to harsh industrial conditions
When to choose this model
- Ensures higher mechanical resistance.
- Used in applications requiring durability.
- Used in applications requiring reliability.
- Used in continuous processes.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
