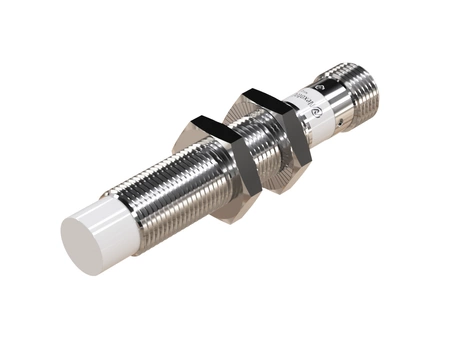

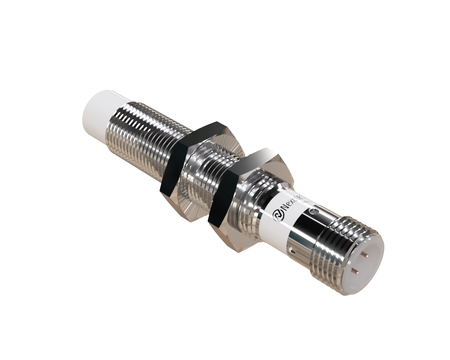

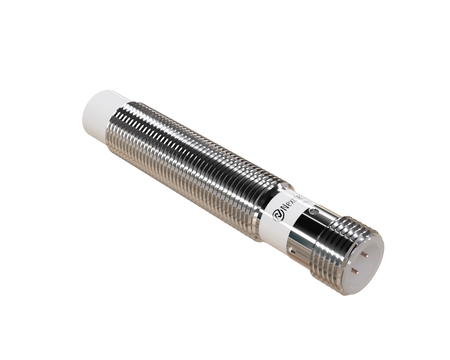

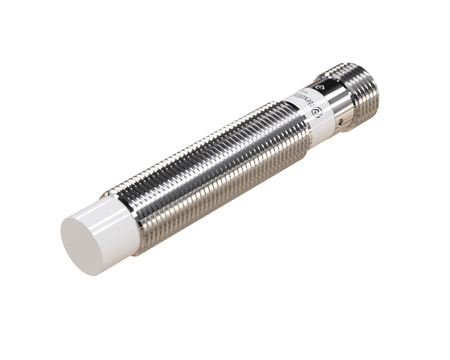

Inductive sensor M12 68 mm connector M12 NPN NO & NC Sn = 8 mm
- ● Compact M12 diameter simplifies integration
- ● Long design for high-space systems
- ● Sensor with greater detection distance
- ● Plug-in – durable for everyday use
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS12435 with a PBT sensing face has been designed for operation in harsh environmental conditions.
The M12 variant fits into a range of sensors used in control and process automation applications. The Ø12 x 68 mm diameter guarantees a good balance between size and stability.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 68 mm, used in large industrial installations
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Use in positioning and production synchronization systems.
- Operation in high-dynamics industrial environments.
- Detection of product position in packaging processes.
- Support for synchronization of robots and machines.
- Detection of position in internal transport systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Resistance to coolants, oils and industrial contaminants
- Easy integration with dosing and labeling machines
- Stable operation in dynamic automation systems
- Reliable operation in safety and control systems
When to choose this model
- Used in production systems with higher load.
- Used in mid-range OEM systems.
- Suitable for medium and large-scale systems.
- Used in mass production.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
