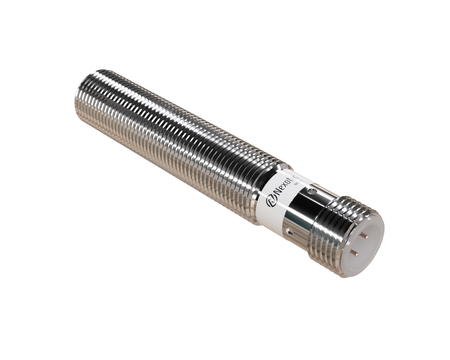

Inductive sensor M12 68 mm connector M12 NPN NO & NC Sn = 4 mm
- ● Compact M12 for standard installations
- ● Long design for high-space systems
- ● Dependable range for common automation processes
- ● Plug-in – nickel-plated brass housing
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12415 with a PBT sensing face is a robust component for modern automation systems.
The M12 version is a universal solution for applications requiring precise detection in automation. The Ø12 x 68 mm format allows easy adaptation to standard mounting brackets.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 68 mm, used in large industrial installations
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Monitoring of component presence in production transport systems.
- Application in CNC machines for position control of elements and tools.
- Application in forming and sealing machines.
- Detection of elements in robotic work zones.
- Position detection in special-purpose machines.
Features and Benefits
- Signal repeatability in mass production processes
- High detection precision in machining environments
- Resistance to intensive cyclic operation
- Reliable synchronization of machines and robots
- Versatile use in different OEM machine types
When to choose this model
- Used where a longer detection range is required compared to standard models.
- Chosen for applications requiring increased detection distance.
- Often used in heavier industrial automation.
- Suitable for high-intensity environments.
Connection
The sensor has two NPN outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) indicate the state of a PNP output and have pins 2 and 4 joined inside the connector, so they are not suitable for this sensor.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
