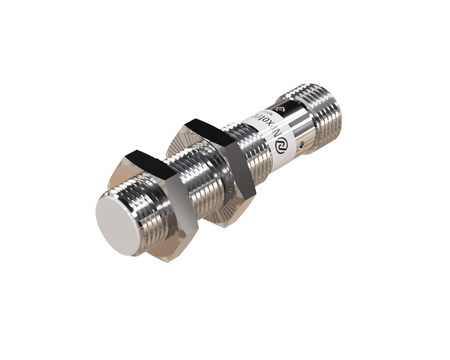

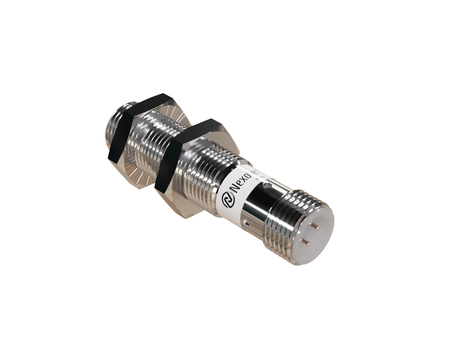

Inductive sensor M12 50 mm connector M12 PNP NO & NC Sn = 8 mm
- ● M12 enables flexible system planning
- ● Long version for open mounting areas
- ● Sensor with enhanced operating range
- ● Plug-in – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial inductive sensor NIS12366 with a PBT sensing face is ideal for applications requiring durability and precise performance.
This M12 inductive sensor supports efficient operation of machines and production equipment. The Ø12 x 50 mm format facilitates installation in standard housings.
Technical specification:
- Diameter: M12, stable operation in industrial conditions
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Position control of parts in automotive assembly lines.
- Use in automation of cutting and milling processes.
- Detection of product position in packaging processes.
- Application in robotic axis positioning systems.
- Support for high-duty cycle equipment operation.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- Easy integration with dosing and labeling machines
- Reliable synchronization of machines and robots
- Stable operation in high-duty cycle machines
When to choose this model
- Suitable for more demanding industrial applications.
- Performs well in 24/7 production lines.
- Suitable for medium and large-scale systems.
- Used in continuous processes.
Connection
The sensor has two outputs, NO and NC, on separate pins (NO on pin 4, NC on pin 2), so connect it with an M12 4-pin connection cable without LEDs, which brings out both pins separately. In cables with LEDs (NXOC12281…, NXOC12401…) pins 2 and 4 are joined inside the connector, so they are not suitable for sensors with two outputs.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
