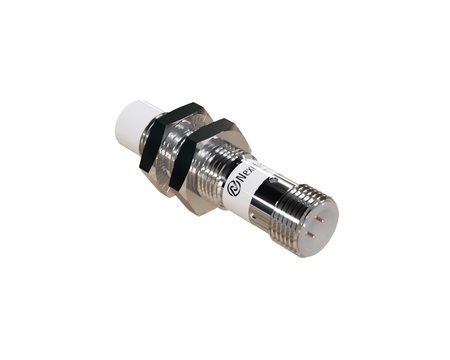

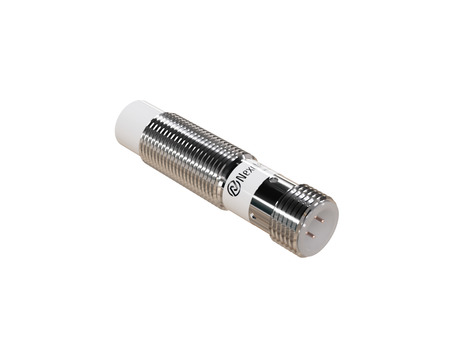

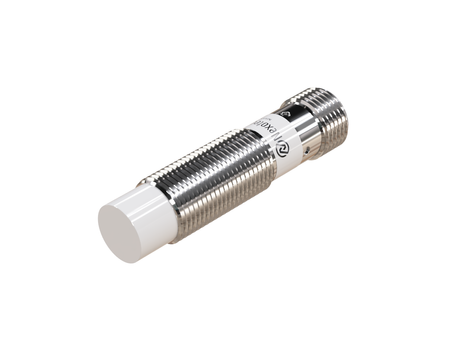

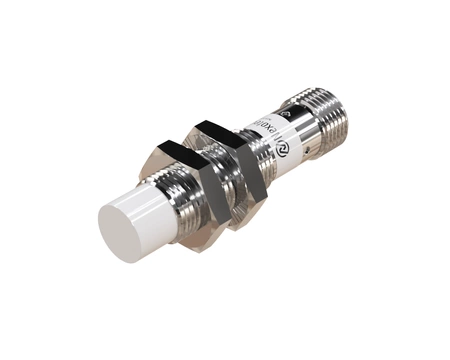

Inductive sensor M12 50 mm connector M12 PNP NC Sn = 10 mm
Symbol:
NIS12354
Inductive sensor M12 50 mm connector M12 PNP NC Sn = 10 mm
- ● M12 version simplifies component placement
- ● Long design for wide systems
- ● Sensor with extended detection field
- ● Plug-in – resistant to dust and dirt
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Files to download
NIS12354
A modern inductive sensor NIS12354 with a Teflon coating provides a long service life in demanding industrial environments.
The M12 sensor is a solution designed for control systems requiring reliability and stability., The Ø12 x 50 mm diameter guarantees a good balance between size and stability.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, used in standard industrial applications
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NC, used in safety functions
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Quality and presence control of elements in production processes.
- Use in automation of cutting and milling processes.
- Control of production line synchronization.
- Support for synchronization of robots and machines.
- Control of processes in complex mechanical systems.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- Reliable operation in automated packaging systems
- Stable operation in high-duty cycle machines
When to choose this model
- Used in production systems with higher load.
- Ensures stability in variable conditions.
- Used in applications requiring reliability.
- Used in applications requiring stable operation.
Other information
Brand
Entity responsible for this product in the EU
Nexotec spółka z ograniczoną odpowiedzialnościąMore
ProducerNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: +48 600 025 770E-mail: azakrzewski@nexotec.pl
Responsible entityNexotec spółka z ograniczoną odpowiedzialnościąAddress:
Marii Kuncewiczowej 3Postal code: 41-706City: Ruda ŚląskaCountry: PolskaPhone number: 600025770E-mail: azakrzewski@nexotec.pl
Symbol
NIS12354
Producer code
5907367817775
Series
General information
DiameterMore
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
M12
Switching distance
10 mm
Mounting
Non-flush mounting
Output function
PNP
Switching function
NC
Electrical data
Operating voltage
DC 10-30V
No load current
<10mA
Max load current
200mA
Leakage current
<0.01mA
Repeat accuracy
<1.0%sr
Short-circuit protection
YES
Overload trip point
220mA
Voltage drop
<1,5V
Ripple
<10%
Response time
0,5ms
Switching frequency
400Hz
Temperature drift
<10%sr
Switching hysteresis
<15%sr
Mechanical data
Housing shape
Threaded
Housing material
Nickel-plated brass
Material active face
PBT
LED display
YES

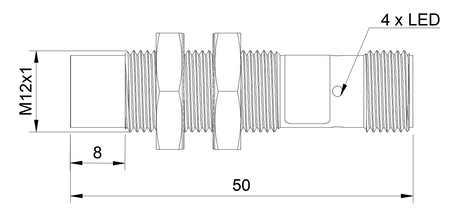

Dimensions
Ø12 x 50 mm
Sensor length
50 mm
Electrical connection
Connection type
Connector
Connector size
M12
Number of pins
4
Cable length
n/d
Operating conditions
Protection category
IP67
Operating temperature min
-25℃
Operating temperature max
+70℃
Inne
Manufacturer code
NIS12354
Condition
New
Packaging condition
Original
Type
Inductive
Weight in kg
0,1
Współczynnik redukcji
Fe37 steel
1
Aluminium
0,35 - 0,6
Brass
0,4 - 0,7
Copper
0,25 – 0,5
Stainless steel
0,8 - 1
Cast iron
0,95 - 1
Nikiel
0,6 - 0,75
Manufacturer's warranty for 2 years
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
