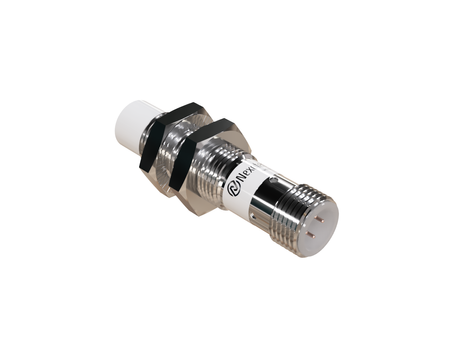

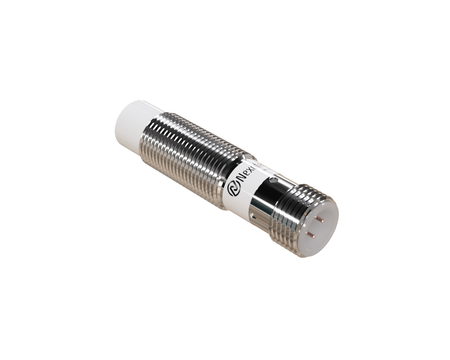

Inductive sensor M12 50 mm connector M12 NPN NO Sn = 12 mm
- ● M12 simplifies component placement in production lines
- ● Enlarged enclosure for stable mounting
- ● Sn distance for greater operating range
- ● Plug-in – resistant to dust and dirt
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A compact inductive sensor NIS12371 with a Teflon face is a reliable solution for control systems and production lines.
The M12 model ensures effective operation in production installations and control systems., Uniwersalna wielkość Ø12 x 50 mm ułatwia integrację w wielu konstrukcjach.
Technical specification:
- Diameter: M12, standard size for most machine applications
- Length: 50 mm, easy integration with mounting systems
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NO, normally open state at rest
- Cable length: n/d
- Supply voltage: DC 10-30V, protection against typical voltage fluctuations
Applications
- Operation in demanding industrial automotive environments.
- Application in CNC machines for position control of elements and tools.
- Application in packaging lines for product presence detection.
- Application in robotic axis positioning systems.
- Use in mass and custom production systems.
Features and Benefits
- Signal repeatability in mass production processes
- Compatibility with standard industrial control systems
- Stable detection in high-throughput processes
- Stable operation in dynamic automation systems
When to choose this model
- Ensures higher mechanical resistance.
- Performs well in 24/7 production lines.
- Suitable for medium and large-scale systems.
- Performs well in large-scale automation systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
