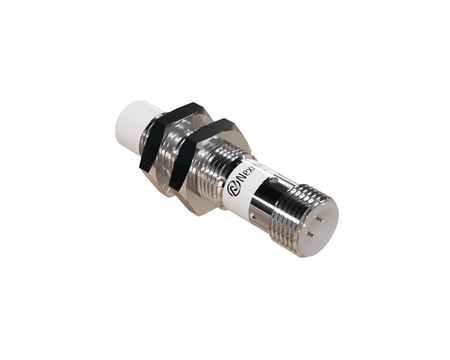

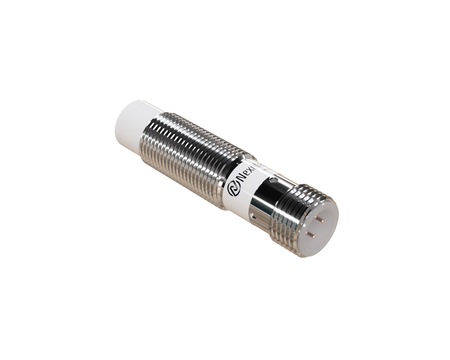

Inductive sensor M12 50 mm connector M12 NPN NO Sn = 10 mm
- ● Compact M12 diameter simplifies integration
- ● Longer module for expanded systems
- ● Sensor for detection over larger areas
- ● Plug-in – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12351 with a PBT sensing face is a robust component for modern automation systems.
The M12 sensor belongs to a group of solutions designed for modern industrial systems. The Ø12 x 50 mm size ensures stability without occupying excessive space.
Technical specification:
- Diameter: M12, stable operation in industrial conditions
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO, standard inductive sensor logic
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Detection of workpieces in machining fixtures.
- Control of labeling and dosing machines.
- Application in robotic axis positioning systems.
- Application in OEM machine automation.
Features and Benefits
- Easy integration with robotic and PLC systems
- Fast response in dynamic machining processes
- Easy integration with dosing and labeling machines
- Compatibility with industrial robots and EOAT systems
- Long service life in continuous operation
When to choose this model
- Suitable for more demanding industrial applications.
- Performs well in 24/7 production lines.
- Used in applications requiring reliability.
- Used in continuous processes.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
