Inductive sensor M12 50 mm connector M12 NPN NO & NC Sn = 12 mm
- ● Compact M12 for typical systems
- ● Extended housing for large installations
- ● Sn distance for greater operating range
- ● Plug-in – precise in challenging applications
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12375 with a Teflon-finished sensing face guarantees stable operation even under intensive use.
The M12 standard inductive sensor is a solution for production systems and automation., Ø12 x 50 mm sensors offer installation convenience thanks to optimal proportions.

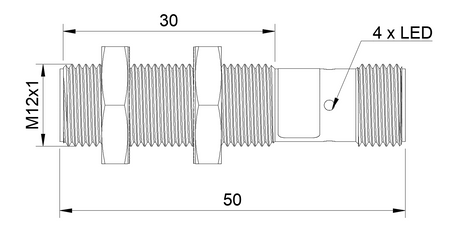

Technical specification:
- Diameter: M12, stable operation in industrial conditions
- Length: 50 mm, good balance between size and durability
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Monitoring of component presence in production transport systems.
- Detection of workpieces in machining fixtures.
- Control of production line synchronization.
- Detection of elements in robotic work zones.
- Application in industrial machines for controlling position of moving parts.
Features and Benefits
- Easy integration with robotic and PLC systems
- Compatibility with standard industrial control systems
- Reliable operation in automated packaging systems
- Stable operation in dynamic automation systems
- Long service life in continuous operation
When to choose this model
- Ensures higher mechanical resistance.
- Suitable for continuous operation.
- Used in installations with higher mounting tolerance.
- Performs well in large-scale automation systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
