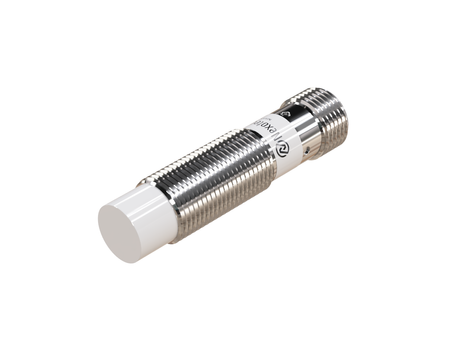

Inductive sensor M12 50 mm connector M12 NPN NC Sn = 12 mm
- ● M12 version simplifies component arrangement
- ● Housing for extensive workspaces
- ● Sensor for remote installations
- ● Plug-in – performs well in demanding conditions
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An advanced inductive sensor NIS12372 with a PBT sensing face supports the efficient operation of industrial machines and equipment.
The M12 variant fits into a range of sensors used in control and process automation applications. Ø12 x 50 mm sensors allow convenient installation under typical conditions.
Technical specification:

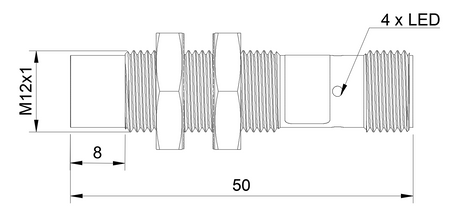

- Diameter: M12, longer detection range compared to smaller models
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 12 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, good protection against standard corrosion
- Sensing face material: PBT,
- Mounting: non-flush mounting
- Switching function: NC, used in safety functions
- Cable length: n/d
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Operation in demanding industrial automotive environments.
- Application in CNC machines for position control of elements and tools.
- Application in forming and sealing machines.
- Use in automatic assembly systems.
- Control of processes in complex mechanical systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Reliable detection of workpiece and tool positions
- High response speed in packaging lines
- Fast detection in pick & place processes
- High resistance to harsh industrial conditions
When to choose this model
- Used where a longer detection range is required compared to standard models.
- Suitable for detecting larger objects.
- Good for upgrading industrial systems.
- Used in applications requiring stable operation.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
