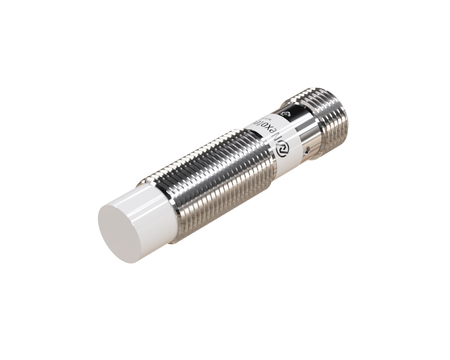

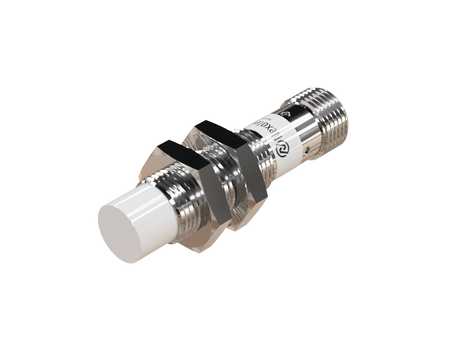

Inductive sensor M12 50 mm connector M12 NPN NC Sn = 10 mm
- ● M12 simplifies component placement in production lines
- ● Housing for larger industrial installations
- ● Sensor with extended range for long-distance detection
- ● Plug-in – operating temperature -25 °C to +70 °C
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A modern inductive sensor NIS12352 with a PBT sensing face provides a long service life in demanding industrial environments.
The M12 variant fits into a range of sensors used in control and process automation applications. Ø12 x 50 mm sensors offer universal dimensions suited to typical installations.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 50 mm, stable mechanical construction
- Sensing range: 10 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, sensing face material – PBT
- Mounting: non-flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Application in production lines of automotive components for detecting the presence of metal elements.
- Application in material feeding and unloading systems.
- Application in packaging lines for product presence detection.
- Position control of grippers and robotic actuators.
- Use in mass and custom production systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- High detection precision in machining environments
- High response speed in packaging lines
- Fast detection in pick & place processes
- Versatile use in different OEM machine types
When to choose this model
- Good for operation in moderately demanding environments.
- Good for larger industrial machines.
- Ensures reliable detection in harsher conditions.
- Suitable for medium-sized machines.
Connection
The sensor has an NPN output, so connect it with an M12 4-pin connection cable without LEDs. Cables with LEDs (NXOC12281…, NXOC12401…) have a yellow status LED wired for a PNP output and are not suitable for NPN sensors.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
This product is covered by a 24-month warranty from the date of purchase. Claims can be submitted via the complaint form in our shop. Your statutory rights are not affected by this warranty.
