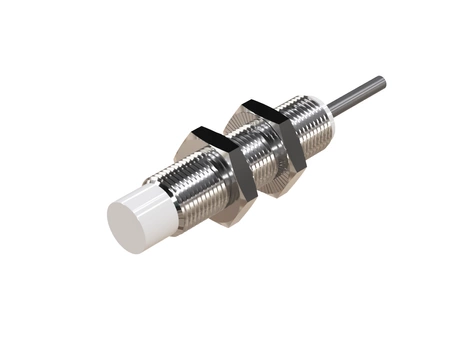

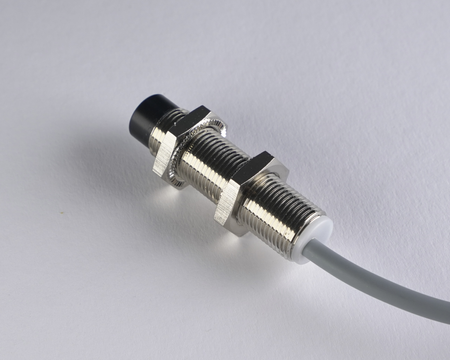

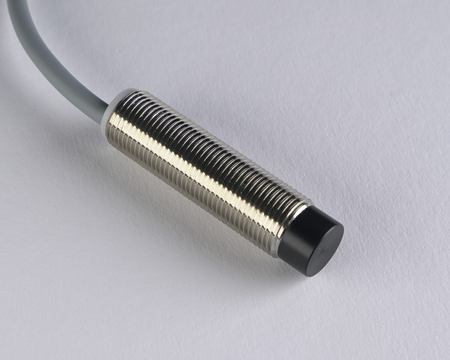

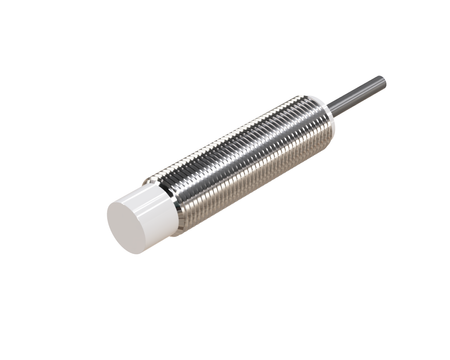

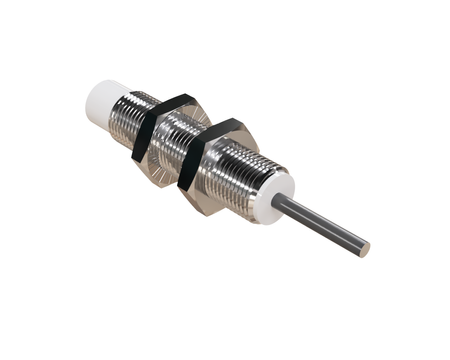

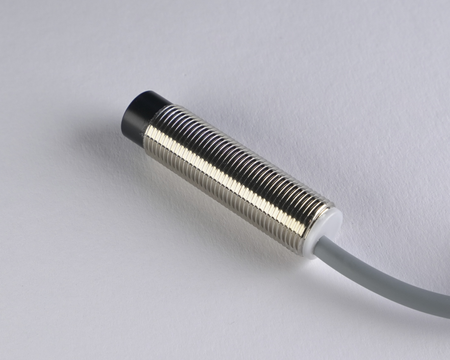

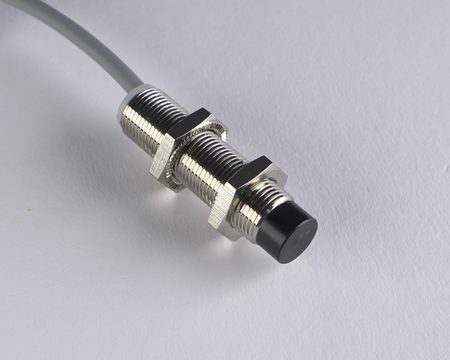

Inductive sensor M12 50 mm cable 2m NPN NO & NC Sn = 8 mm
- ● M12 suitable for medium-sized automation systems
- ● Long design for wide systems
- ● Sensor for long-range applications
- ● With cable – quick connection in machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An industrial Teflon-faced inductive sensor NIS12235-K2 has been designed for operation in harsh environmental conditions.
The M12 industrial sensor fits into a line of devices dedicated to modern production installations., The universal Ø12 x 50 mm size facilitates integration into many structures.
Technical specification:

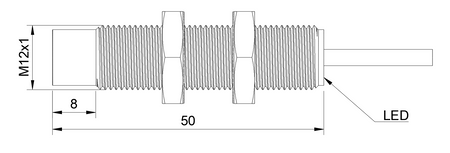

- Diameter: M12, longer detection range compared to smaller models
- Length: 50 mm, universal dimensions for most applications
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, stable mechanical properties of the material
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: 2 m
- Supply voltage: DC 10-30V, stable operation in DC automation
Applications
- Use in positioning and production synchronization systems.
- Monitoring of processes in machining centers.
- Control of production line synchronization.
- Application in robotic systems for detecting element positions.
- Support for high-duty cycle equipment operation.
Features and Benefits
- Resistance to vibrations and intensive operation
- Stable operation in CNC machines and automation systems
- Reliable operation in automated packaging systems
- Compatibility with industrial robots and EOAT systems
- Long service life in continuous operation
When to choose this model
- Used in production systems with higher load.
- Chosen for applications requiring increased detection distance.
- Good for upgrading industrial systems.
- Good for multi-point systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
