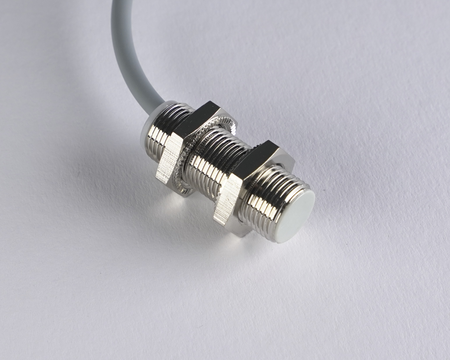

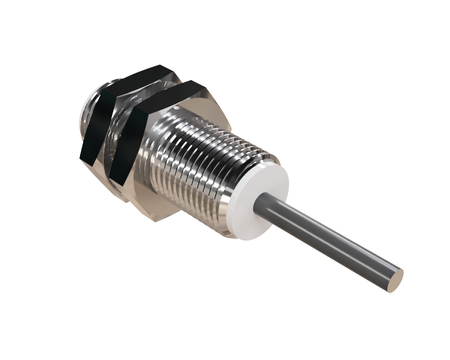

Inductive sensor M12 30 mm cable 3m NPN NC Sn = 2 mm
- ● M12 enables flexible system planning
- ● Compact housing for tight mounting spaces
- ● Sensor with short detection field
- ● With cable – simple installation in standard machinery
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
An inductive sensor NIS12102-K3 for industrial automation with a PBT sensing face provides stable and long-lasting performance.
The M12 variant fits into a range of sensors used in control and process automation applications. Ø12 x 30 mm dimensions ensure stable seating in the structure.
Technical specification:
- Diameter: M12, high mechanical resistance of cylindrical housing
- Length: 30 mm, easy integration with mounting systems
- Sensing range: 2 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT,
- Mounting: Flush mounting
- Switching function: NC, continuous signal monitoring in circuit
- Cable length: 3 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Use in positioning and production synchronization systems.
- Operation in high-dynamics industrial environments.
- Operation in high-speed packaging production cycles.
- Application in robotic systems for detecting element positions.
- Control of processes in complex mechanical systems.
Features and Benefits
- Easy integration with robotic and PLC systems
- Reliable detection of workpiece and tool positions
- High response speed in packaging lines
- Reliable synchronization of machines and robots
When to choose this model
- Suitable for more demanding industrial applications.
- Good for larger industrial machines.
- Used in installations with higher mounting tolerance.
- Performs well in large-scale automation systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
