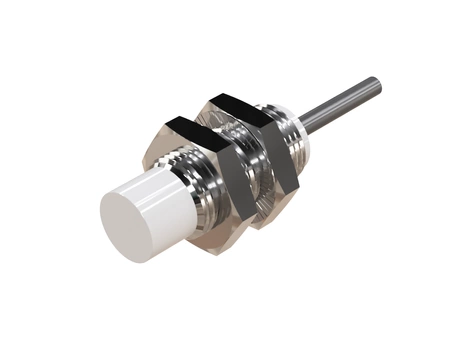

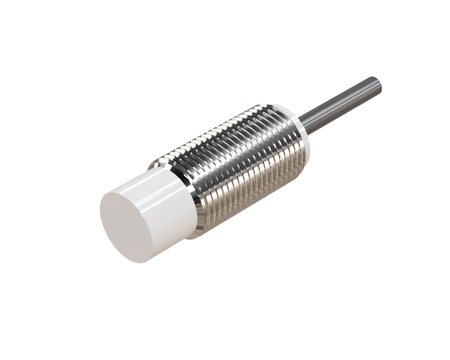

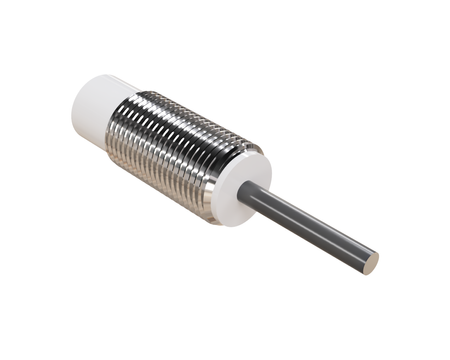

Inductive sensor M12 30 mm cable 2m NPN NO & NC Sn = 8 mm
- ● M12 suitable for medium-sized automation systems
- ● Short housing for small installations
- ● Sensor with greater detection distance
- ● With cable – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
A modern inductive sensor NIS12135-K2 with a PBT sensing face provides a long service life in demanding industrial environments.
The M12 version was developed for efficient operation in standard industrial automation solutions. Ø12 x 30 mm sensors offer installation convenience thanks to optimal proportions.
Technical specification:
- Diameter: M12, standard size for most machine applications
- Length: 30 mm, stable mechanical construction
- Sensing range: 8 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO & NC
- Cable length: 2 m
- Supply voltage: DC 10-30V, compatible with PLC systems
Applications
- Support for automation of welding processes and steel structure assembly.
- Use in automation of cutting and milling processes.
- Operation in high-speed packaging production cycles.
- Position control of grippers and robotic actuators.
- Position detection in special-purpose machines.
Features and Benefits
- Signal repeatability in mass production processes
- Reliable detection of workpiece and tool positions
- Resistance to frequent cycles and micro-vibrations
- High resistance to harsh industrial conditions
When to choose this model
- Used in production and logistics automation.
- Used in mid-range OEM systems.
- Suitable for medium and large-scale systems.
- Good for multi-point systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
