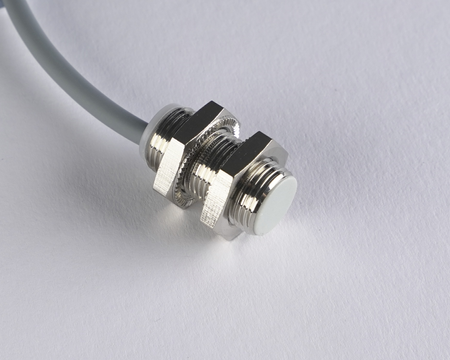

Inductive sensor M12 22 mm cable 3m NPN NC Sn = 4 mm
- ● M12 enables flexible system planning
- ● Compact housing for small systems
- ● Standard range for everyday machine operation
- ● With cable – easy installation and setup
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
NIS12022-K3
An industrial Teflon-faced inductive sensor NIS12022-K3 has been designed for operation in harsh environmental conditions.
This M12 inductive sensor was designed for integration with automation and process control systems., Ø12 x 22 mm sensors, thanks to their size, are easy to install and adjust.
Technical specification:
- Diameter: M12, longer detection range compared to smaller models
- Length: 22 mm, design intended for tight installation spaces
- Sensing range: 4 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: Flush mounting
- Switching function: NC, signal continuity monitoring
- Cable length: 3 m
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Quality and presence control of elements in production processes.
- Operation in high-dynamics industrial environments.
- Application in packaging lines for product presence detection.
- Support for synchronization of robots and machines.
- Application in machine safety and interlock systems.
Features and Benefits
- Signal repeatability in mass production processes
- Precise synchronization of production processes
- Reliable synchronization of machines and robots
When to choose this model
- Chosen for applications requiring increased detection distance.
- Good for larger industrial machines.
- Used in transport systems.
- Used in continuous processes.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
The manufacturer guarantees repair or replacement of the equipment for up to 24 months from the date of purchase. Contact the store via the complaint form to order a courier who will collect the equipment from your home.
