Czujnik indukcyjny M30 78 mm wtyczka M12 PNP NO Sn = 25 mm
- ● Threaded M30 housing for mounting in a hole or bracket
- ● Long version for open mounting areas
- ● Sn distance with extended sensing zone
- ● Plug-in – IP67: dust-tight and protected against immersion in water
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

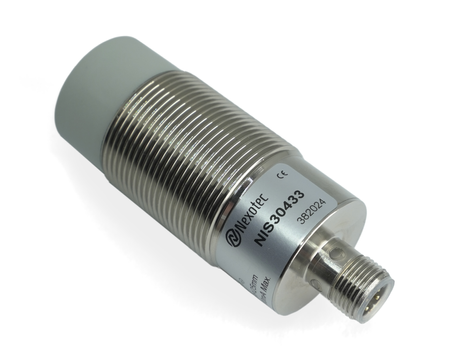

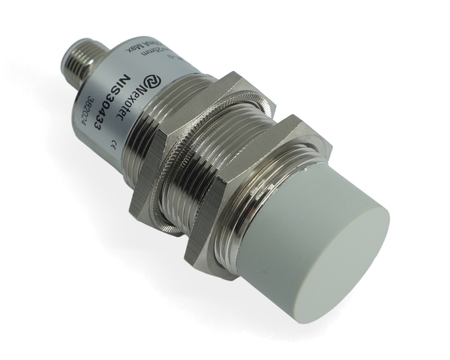

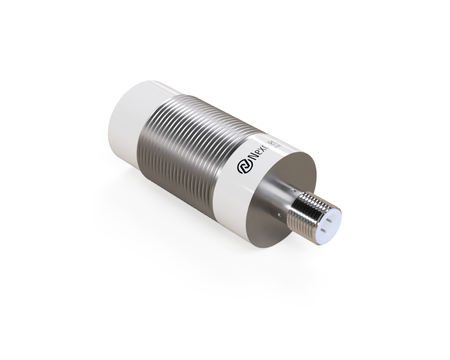

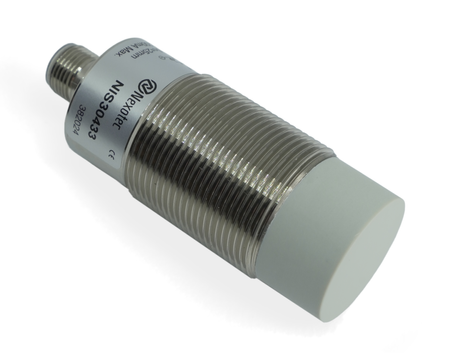

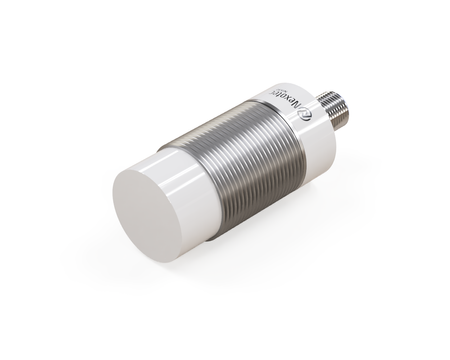

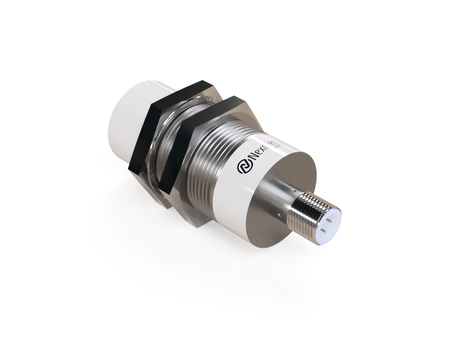

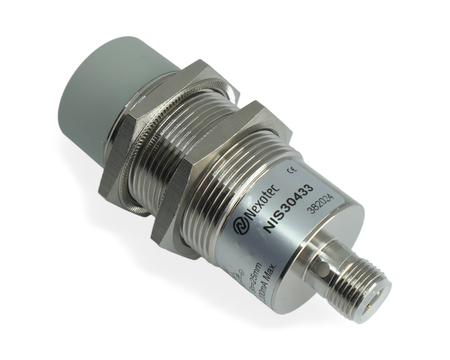

A versatile inductive sensor NIS30433 with a PBT sensing face combines durability, a compact design, and reliable performance.
The M30 inductive sensor offers stable operation in high-load applications. Ø30 x 78 mm sensors offer a high level of stability in environments subject to heavy overloads.

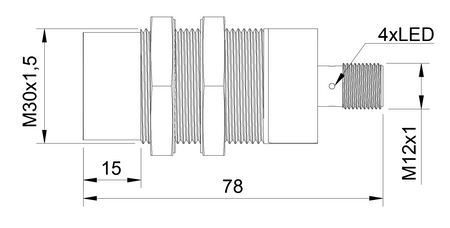

Technical specification:
- Diameter: M30, high mechanical and environmental resistance
- Length: 78 mm, better resistance to vibration and stress
- Sensing range: 25 mm
- Housing: Threaded housing sensor
- Housing material: Nickel-plated brass, smooth surface for easier operation
- Sensing face material: PBT, stable dielectric properties for inductive field
- Mounting: non-flush mounting
- Switching function: NO, signal generated upon metal detection
- Cable length: n/d
- Supply voltage: DC 10-30V, commonly used control supply
Applications
- Position control of parts in automotive assembly lines.
- Detection of workpieces in machining fixtures.
- Support for automatic packaging systems.
- Use in automatic assembly systems.
- Use in actuator and mechanism control systems.
Features and Benefits
- Precise detection of metal components in assembly processes
- Resistance to coolants, oils and industrial contaminants
- High response speed in packaging lines
- Resistance to frequent cycles and micro-vibrations
- Stable operation in high-duty cycle machines
When to choose this model
- Good for extreme environmental conditions.
- Suitable for mining and heavy industry.
- Used in heavy transport systems.
- Used in heavy-duty OEM systems.
The diameter of an inductive sensor is a dimension that defines the width of the sensor element measured in millimeters. This is an important technical parameter as it affects the mounting method and the space required for installation.
Rated detection range is a key parameter of an inductive sensor.Indicates the distance at which the sensor changes its output state when a metal object approaches its front end axially.This is the sensor's most important functional feature—it determines how close the object being detected must be in order to be registered.
